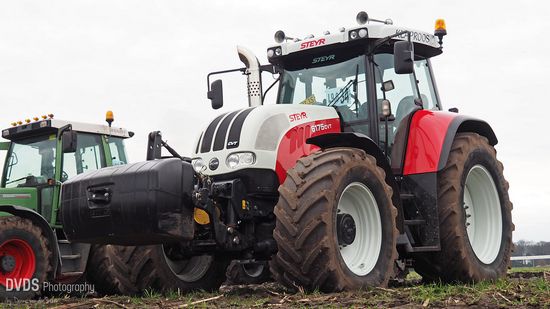

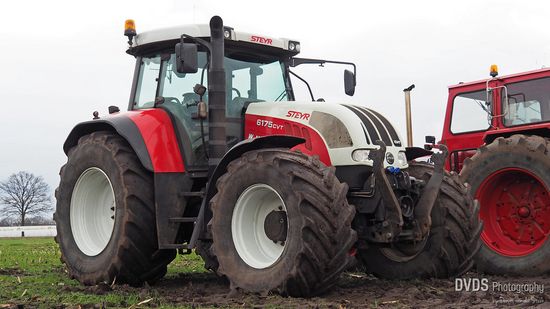

Steyr 6175 CVT

Production: 2007 - 2012

Production
Manufacturer:	Steyr
Type:	Utility tractor

Steyr 6175 CVT Power
Engine (gross):	175 hp 130.5 kW
Engine (max):	200 hp 149.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Trailer brakes:	pneumatic*Optional
hydraulic*Optional
Cab:	Steyr luxury cab standard with air-conditioning.
Transmission:	continuously variable transmission (CVT)

Hydraulics
Valves:	8 (max)
Pump flow:	34.3 gpm 129.8 lpm

Tractor hitch
Rear Type:	III/II
Rear lift:	21830 lbs 9902 kg
Front lift:	8822 lbs 4001 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000/1000E (1.375)
Engine RPM:	540@1878 540E@1608 1000@1869 1000E@1600
Front PTO:	independent*Optional
Front RPM:	1000

Electrical
Ground:	electric
Charging system:	alternator

Engine Detail
Sisu
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	402.8 ci 6.6 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Rated Power (ECE R120):	175 hp 130.5 kW
Maximum Power (ECE R120):	200 hp 149.1 kW
Rated RPM:	2100
Operating RPM:	1800-2100
Torque:	549.5 lb-ft 745.1 Nm
Torque RPM:	1400
Starter type:	negative

Transmission
Type:	continuously variable transmission (CVT)
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	111.5 inches 283 cm
Length:	188 inches 477 cm
Width:	100.4 inches 255 cm
Height:	119.8 inches 304 cm
Shiping weight:	14925 lbs 6769 kg
Max weight:	25353 lbs 11500 kg
Front tread:	75.1 inches 190 cm
Rear tread:	73.6 inches 186 cm
