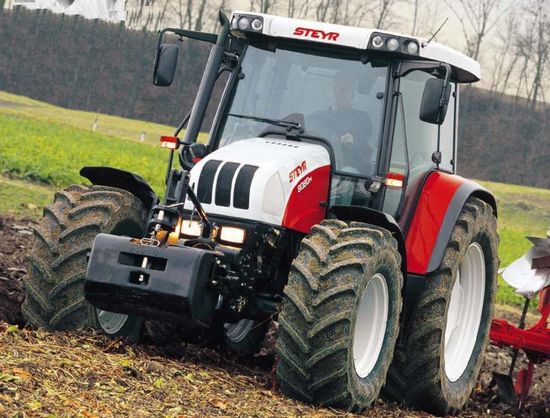

Steyr 9080M

Production: 2003 - 2007

Production
Manufacturer:	Steyr
Type:	Utility tractor

Steyr 9080M Power
Engine:	82 hp 61.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Supercomfort cab
Transmissions:	16-speed
32-speed

Hydraulics
Pressure:	2538 psi 175.0 bar
Valves:	4
Total flow:	13.2 gpm 50.0 lpm
22.7 gpm 85.9 lpm *Optional

Tractor hitch
Rear lift:	10,800 lbs 4898 kg
Front lift:	6,698 lbs 3038 kg

Power Take-off (PTO)
Rear RPM:	430/540/540E/1000
Front RPM:	1000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Sisu 44DT
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.3 ci 4.4 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Power:	82 hp 61.1 kW
Rated RPM:	2300
Torque:	228.6 lb-ft 310.0 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	95.4 inches 242 cm
Length:	156.7 inches 398 cm
Width:	85.4 inches 216 cm
Height:	106 inches 269 cm
Weight:	8,267 lbs 3749 kg
