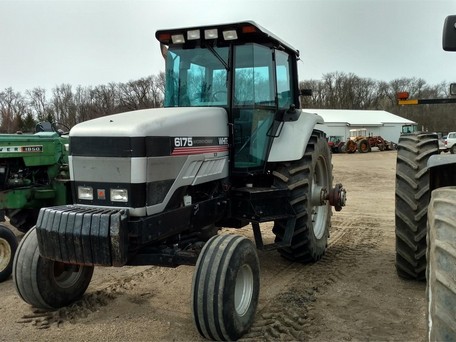

White 6175

Production: 1993 - 1999

Production
Manufacturer:	White (a part of AGCO)
Type:	Row-Crop tractor
Factory:	Coldwater, Ohio, USA
Original price:	$91,000 (1999 )

White 6175 Power
PTO (claimed):	175 hp 130.5 kW
Drawbar (tested):	154.72 hp 115.4 kW
PTO (tested):	192.94 hp 143.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	18-speed full power shift

Hydraulics
Type:	closed center
Pressure:	2800 psi 193.1 bar
Valves:	3
Pump flow:	26 gpm 98.4 lpm

Tractor hitch
Rear Type:	III/II
Control:	electronic lower-link draft sensing
Rear lift (at 24"/610mm):	8500 lbs 3855 kg
10800 lbs 4898 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000

6175 Serial Numbers
1993:	66001
1994:	661001
1995:	661501
1996:	662301
1997:	662393

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
CDC-Cummins 6CT8.3
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	505 ci 8.3 L
Bore/Stroke:	4.49x5.32 inches 114 x 135 mm
Fuel system:	direct injection
Air cleaner:	dual elements with aspirator
Compression:	17.3:1
Rated RPM:	2200
Starter volts:	12

Transmission
Manufacturer:	Funk-Deere
Type:	full power shift
Gears:	18 forward and 9 reverse
Clutch:	hydraulic wet disc

Dimensions
Wheelbase:	12.5 inches 31 cm
Length:	188.9 inches 479 cm
Height:	119 inches 302 cm
Rear axle:	Bar: 98 inch length 2489 mm
Rear axle:	Bar: 115 inch length 2921 mm
