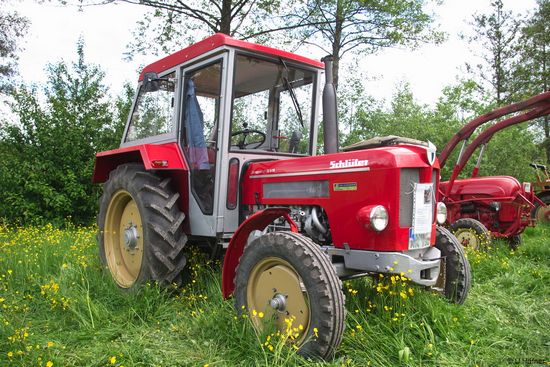

Schluter Compact 550

Production: 1972

Contents:

Production

Manufacturer:Schluter

Schluter Compact 550 Power

Engine:58 hp 43.3 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:mechanical/power assist
Brakes:drum
Transmission:8-speed

Tractor hitch

Rear lift:3,308 lbs 1500 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

Schluter SDM 108 W 3
diesel
3-cylinder
Displacement:209.6 ci 3.4 L
Bore/Stroke:4.331x4.921 inches 110 x 125 mm
Power:58 hp 43.3 kW
Rated RPM:2100
Torque:173.3 lb-ft 235.0 Nm
Torque RPM:1300

Transmission

Gears:8 forward and 4 reverse

Dimensions

Wheelbase:78.7 inches 199 cm
Length:138.2 inches 351 cm
Height:92.5 inches 234 cm
Weight:5,931 lbs 2690 kg (2WD)
6,593 lbs 2990 kg (4WD)
