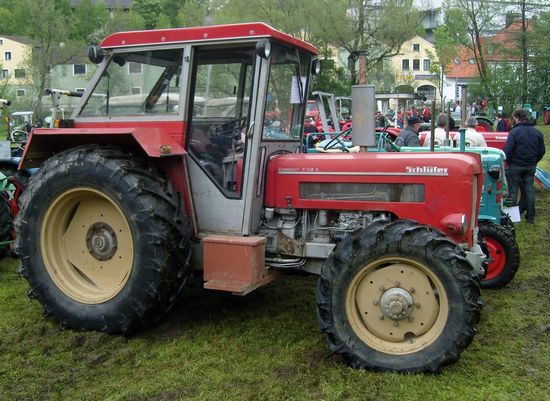

Schluter Compact 850

Production: 1971 - 1983

Contents:

Production

Manufacturer:Schluter

Schluter Compact 850 Power

Engine:80 hp 59.7 kW

Mechanical

Chassis:4x2 2WD
4x4 MFWD 4WD
Steering:mechanical/power assist
Brakes:drum
Transmission:12-speed

Tractor hitch

Rear lift:7,056 lbs 3200 kg

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

Schluter SDM 110 W 4
diesel
4-cylinder
Displacement:290.0 ci 4.8 L
Bore/Stroke:4.331x4.921 inches 110 x 125 mm
Power:80 hp 59.7 kW
Rated RPM:1800
Torque:253.0 lb-ft 343.1 Nm
Torque RPM:1300

Transmission

Gears:12 forward and 6 reverse

Dimensions

Wheelbase:92.5 inches 234 cm
Length:155.5 inches 394 cm
Height:96.9 inches 246 cm
Weight:7,574 lbs 3435 kg (2WD)
8,522 lbs 3865 kg (4WD)
