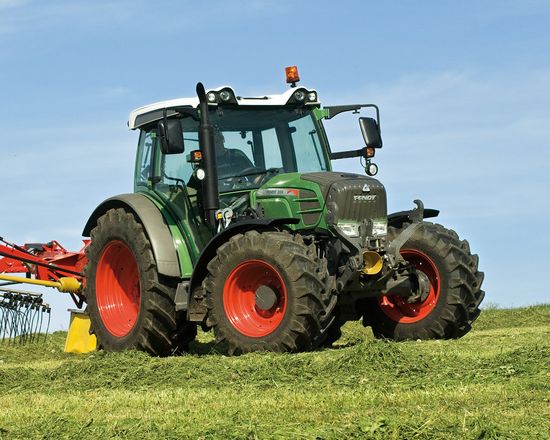

Fendt 209 Vario

Production: 2010 - 2022

Production
Manufacturer:	Fendt (a part of AGCO)
Type:	Utility tractor

Fendt 209 Vario Power
Engine (gross):	89.9 hp 67.0 kW
Engine (net):	79.1 hp 59.0 kW
Engine (max):	93.9 hp 70.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with heater. Air-conditioning available.
Transmission:	continuously-variable transmission

Hydraulics
Pressure:	2900 psi 200.0 bar
Rear valves:	4*Optional
Mid valves:	2*Optional
Pump flow:	12.7 gpm 48.1 lpm
20.1 gpm 76.1 lpm *Optional tandem pumps.

Tractor hitch
Control:	position and draft control
Rear lift:	9268 lbs 4203 kg
Front lift:	5490 lbs 2490 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000
540/ground/1000
Engine RPM:	540@1900 540E@1560 1000@1900
Front PTO:	independent*Optional
Front RPM:	540
1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Charging volts:	14
Battery volts:	12
Battery AH:	90

Engine Detail
AGCO Power
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	201.4 ci 3.3 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Rated Power (ECE R24):	79.1 hp 59.0 kW
Rated Power (EC 97/98):	89.9 hp 67.0 kW
Maximum Power (ECE R24):	89.9 hp 67.0 kW
Maximum Power (EC 97/68):	93.9 hp 70.0 kW
Rated RPM:	2100
Torque:	275.1 lb-ft 373.0 Nm
Torque RPM:	1600
Starter:	electric
Starter volts:	12

Transmission
Transmission:	Vario
Type:	continuously-variable transmission
Gears:	infinite forward and reverse

Dimensions
Wheelbase:	90.3 inches 229 cm
Length:	160.2 inches 406 cm
Width:	85.4 inches 216 cm
Height (cab):	99.6 inches 252 cm
Ground clearance:	17.5 inches 44 cm
Front tread:	66.5 inches 168 cm
Rear tread:	65.4 inches 166 cm
