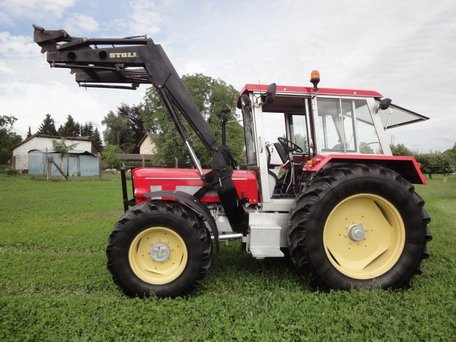

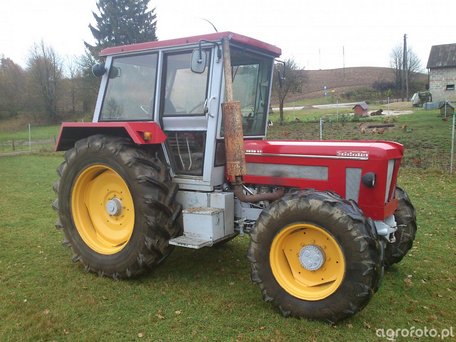

Schluter Compact 1050 V 6

Production: 1984 - 1990

Contents:

Production

Manufacturer:Schluter

Schluter Compact 1050 V 6 Power

Engine:105 hp 78.3 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:drum
Transmission:12-speed

Hydraulics

Total flow:12.9 gpm 48.8 lpm

Tractor hitch

Rear lift:8,599.5 lbs 3900 kg
11,466 lbs 5200 kg (optional)

Power Take-off (PTO)

Rear RPM:540/1000

Engine Detail

MAN D 0226 ME 51
diesel
6-cylinder
Displacement:347.0 ci 5.7 L
Bore/Stroke:4.016x4.567 inches 102 x 116 mm
Power:105 hp 78.3 kW
Rated RPM:2200
Torque RPM:1300

Transmission

Gears:12 forward and 5 reverse

Dimensions

Wheelbase:95.7 inches 243 cm
Length:166.1 inches 421 cm
Height:106.7 inches 271 cm
Weight:10,143 lbs 4600 kg
