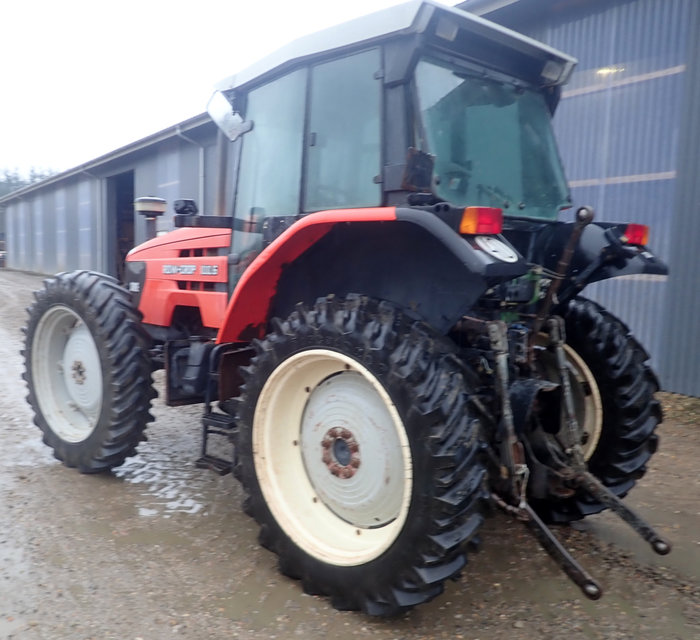

SAME Row Crop 100.6

Production
Manufacturer:	SAME
Type:	High-Clearance tractor

SAME Row Crop 100.6 Power
PTO (claimed):	93 hp 69.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Two-post ROPS. Cab optional with air-conditioning.
Transmission:	20-speed synchronized

Hydraulics
Valves:	2 to 4
Pump flow:	15.8 gpm 59.8 lpm

Tractor hitch
Rear Type:	II
Rear lift:	8591 lbs 3896 kg
9565 lbs 4338 kg *Optional

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	wet disc
Rear RPM:	540/1000 (1.375)

Engine Detail
SAME 1000.6A
diesel
6-cylinder
air-cooled
Displacement:	366 ci 6.0 L
Air cleaner:	dry
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Transmission
Type:	synchronized
Gears:	20 forward and reverse
Clutch:	hydraulic dry disc
Five synchronized gears in four ranges with shuttle.

Dimensions
Wheelbase:	105.6 inches 268 cm
Length:	181.5 inches 461 cm
Width:	85.5 inches 217 cm *Minimum width
Height (hood):	75.1 inches 190 cm
Height (ROPS):	113.2 inches 287 cm
ROPS Weight:	10141 lbs 4599 kg
Cab Weight:	11023 lbs 5000 kg
Ground clearance:	22.7 inches 57 cm
Front tread:	60.7 to 84.4 inches 154 to 214 cm
Rear tread:	56.7 to 88.5 inches 144 to 224 cm
