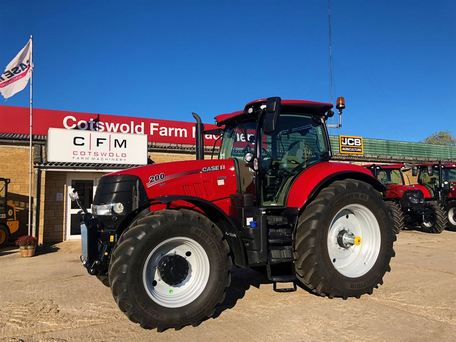

Case IH Puma 200
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Basildon, England |
Case IH Puma 200 Power | |
| Engine (gross): | 200 hp 149.1 kW |
| Engine (max): | 250 hp 186.4 kW |
| PTO (claimed): | 165 hp 123.0 kW |
| Drawbar (tested): | 155.2 hp 115.7 kW |
| PTO (tested): | 198.7 hp 148.2 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Cab: | Cab standard. Optional cab suspension. |
| Transmissions: | 18-speed full power shift |
| 19-speed full power shift | |
| continuously variable transmission (CVT) | |
Capacity | |
| Fuel: | 104 gal 393.6 L |
| Exhaust fluid (DEF): | 13.2 gal 50.0 L |
| Hydraulic system: | 22 gal 83.3 L |
Hydraulics | |
| Type: | closed center pressure flow compensating (PFC) |
| Capacity: | 22 gal 83.3 L |
| Rear valves: | 3 to 4 (mechanical) |
| 3 to 5 (electronic) | |
| Pump flow: | 32 gpm 121.1 lpm (powershift) |
| 35 gpm 132.5 lpm (CVT/opt-PS) | |
| 40 gpm 151.4 lpm (CVT opt) | |
| Total flow: | 49 gpm 185.5 lpm (powershift) |
| 52 gpm 196.8 lpm (CVT/opt-PS) | |
| 57 gpm 215.7 lpm (CVT opt) | |
| Steering flow: | 17 gpm 64.3 lpm |
Tractor hitch | |
| Rear Type: | 2/3N |
| Rear lift: | 10,200 lbs 4626 kg |
| 13,400 lbs 6078 kg (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
| 1000 (1.75) | |
| 1000/1000E | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 150 |
| 200*Optional | |
| Battery CCA: | 1300 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 410.6 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (ECE R120): | 200 hp 149.1 kW |
| Maximum Power (ECE R120): | 250 hp 186.4 kW |
| Air cleaner: | dual paper elements |
| Rated RPM: | 2200 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 16 qts 15.1 L |
Dimensions | |
| Wheelbase: | 113.6 inches 288 cm |
| Operating weight: | 18940 lbs 8591 kg |
| Rear axle: | Bar: 4.125 by 112 inches 104 by 2844 mm |
| Rear axle: | Bar: 4.125 by 98 inches 104 by 2489 mm |
| Rear axle: | Bar: 4.125 by 119 inches 104 by 3022 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
