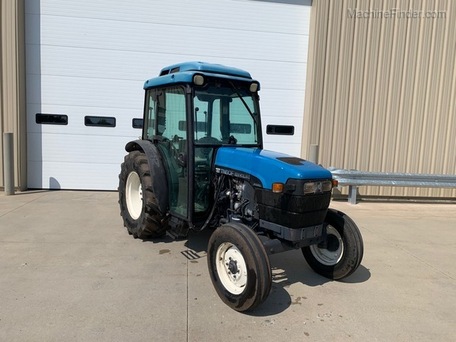

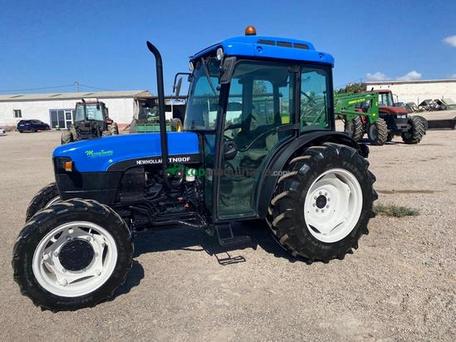

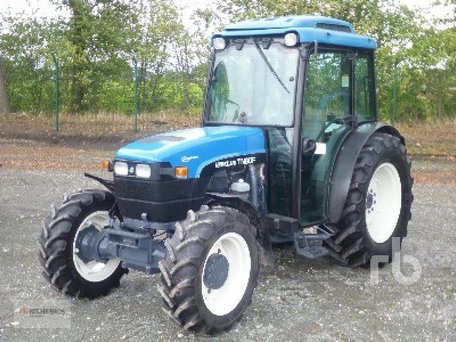

New Holland TN90F
Contents:
Production | |
| Manufacturer: | New Holland |
| Type: | Orchard/Vineyard tractor |
New Holland TN90F Power | |
| Engine (gross): | 91.1 hp 67.9 kW |
| Engine (net): | 88 hp 65.6 kW |
| PTO (claimed): | 80 hp 59.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| 2WD Differential lock: | mechanical |
| 4WD Differential lock: | electro-hydraulic |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Two-post mid-mount folding ROPS. Cab optional with air-conditioning. |
| Transmissions: | 16-speed partially synchronized |
| 32-speed two-speed power shift | |
Hydraulics | |
| Type: | open center |
| Valves: | 2 |
| Pump flow: | 12.4 gpm 46.9 lpm |
| 16.9 gpm 64.0 lpm *Optional | |
| Steering flow: | 7.2 gpm 27.3 lpm (Synchro) |
| 9.2 gpm 34.8 lpm (Dual Command) | |
Tractor hitch | |
| Rear Type: | II/I |
| Control: | position control and lower-link draft sensing |
| Rear lift (at 24"/610mm): | 4400 lbs 1995 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | cerametallic disc |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1957 540E@2132 1000@2125 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| ROPS Charging amps: | 45 |
| Cab Charging amps: | 65 |
| Battery CCA: | 800 |
| Battery volts: | 12 |
| Battery AH: | 100 |
Engine Detail | |
| Iveco 8045 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 238.5 ci 3.9 L |
| Bore/Stroke: | 4.094x4.528 inches 104 x 115 mm |
| Power (gross): | 91.1 hp 67.9 kW |
| Pre-heating: | thermostart |
| Compression: | 16.5:1 |
| Rated RPM: | 2300 |
| Firing order: | 1-3-4-2 |
| Starter: | electric |
| Starter volts: | 12 |
| ROPS Coolant capacity: | 12.2 qts 11.5 L |
| Cab Coolant capacity: | 14.3 qts 13.5 L |
Dimensions | |
| 2WD Wheelbase: | 87.7 inches 222 cm |
| 4WD Wheelbase: | 95.6 inches 242 cm |
| 2WD Length: | 155.7 inches 395 cm |
| 4WD Length: | 157.5 inches 400 cm |
| Width: | 58.7 inches 149 cm |
| Height (ROPS): | 89 inches 226 cm |
| Height (cab): | 90 inches 228 cm |
| 2WD Front tread: | 48.1 to 63.8 inches 122 to 162 cm |
| Rear tread: | 43.7 to 57.4 inches 110 to 145 cm |
