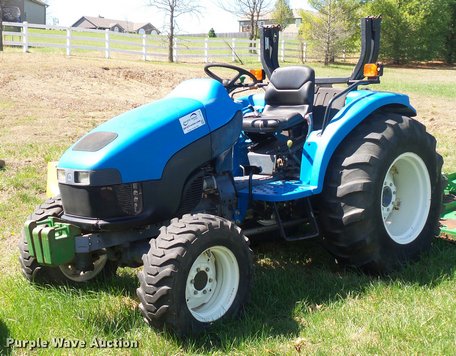

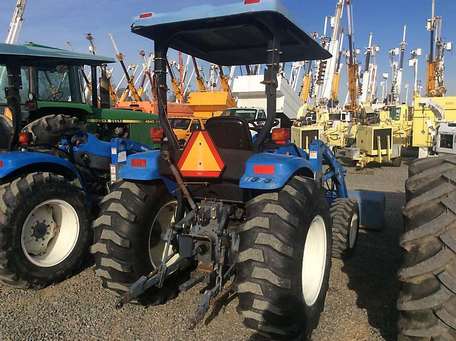

New Holland TC40

Production: 2001 - 2003

Production
Manufacturer:	New Holland
Type:	Compact Utility tractor

Variants
TC40:	base model
TC40D:	deluxe

New Holland TC40 Power
Engine (gross):	40 hp 29.8 kW
Gear PTO (claimed):	35 hp 26.1 kW
Hydro PTO (claimed):	33.2 hp 24.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Two-post ROPS.
Transmissions:	12-speed synch shuttle
hydrostatic

Hydraulics
Pump flow:	9.8 gpm 37.1 lpm
Total flow:	14.9 gpm 56.4 lpm
Steering flow:	5.1 gpm 19.3 lpm

Tractor hitch
Rear Type:	1
Rear lift:	2330 lbs 1056 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibaura N844
diesel
4-cylinder
liquid-cooled
Displacement:	121.7 ci 2.0 L
Power (gross):	40 hp 29.8 kW
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	73.5 inches 186 cm
SuperSteer Wheelbase:	81 inches 205 cm
Length:	125.2 inches 318 cm
SuperSteer Length:	129.5 inches 328 cm
Width:	61.3 inches 155 cm
Height (ROPS):	95 inches 241 cm
Ground clearance:	14 inches 35 cm
Front tread:	46.4 inches 117 cm
Rear tread:	47.5 inches 120 cm
