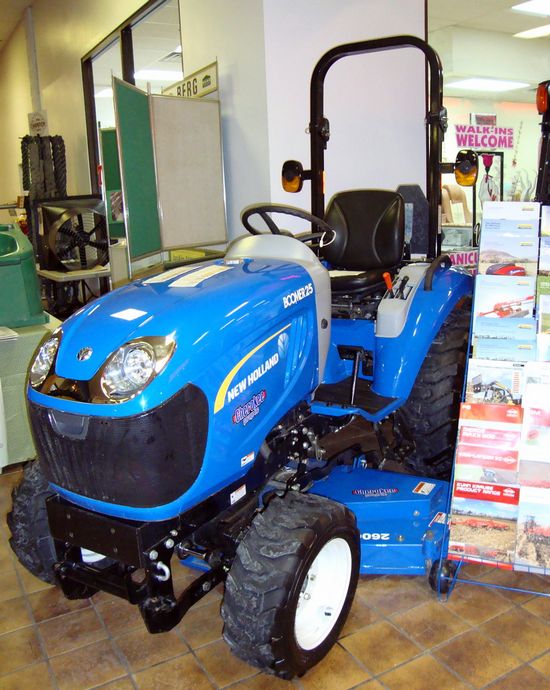

New Holland Boomer 25

Production: 2012 - 2014

Production
Manufacturer:	New Holland
Type:	Sub-Compact Utility tractor

New Holland Boomer 25 Power
Engine (gross):	27 hp 20.1 kW
PTO (claimed):	19.9 hp 14.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	Mechanical rear lock engaged with foot pedal. Limited slip front differential.
Steering:	hydrostatic power
Brakes:	mechanical wet disc
Cab:	Two-post foldable ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	Open center, fixed displacement gear pump
Rear valves:	1 (optional)
Pump flow:	6 gpm 22.7 lpm
Total flow:	8.5 gpm 32.2 lpm
Steering flow:	2.5 gpm 9.5 lpm

Tractor hitch
Rear Type:	I
Control:	mechanical position control
Rear lift (at ends):	1433 lbs 650 kg
Rear lift (at 24"/610mm):	1058 lbs 479 kg
Rear Arms:	fixed link ends
Drawbar:	1-position fixed

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Charging volts:	12
Battery CCA:	560
Battery volts:	12
Battery AH:	45

Engine Detail
Mitsubishi S3L2
diesel
3-cylinder
liquid-cooled
Displacement:	80.4 ci 1.3 L
Bore/Stroke:	3.07x3.62 inches 78 x 92 mm
Emissions:	Interim Tier 4
Power (gross):	27 hp 20.1 kW
Fuel system:	mechanical indirect injection
Air cleaner:	Single element, dry type
Pre-heating:	glow plugs
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse
Two-range hydrostatic transmission with treddle foot pedal and cruise control.

Dimensions
Wheelbase:	59 inches 149 cm
Length:	103.6 inches 263 cm
Width:	43.8 inches 111 cm
Height (ROPS):	85.5 inches 217 cm
Shiping weight:	1,702 lbs 772 kg
