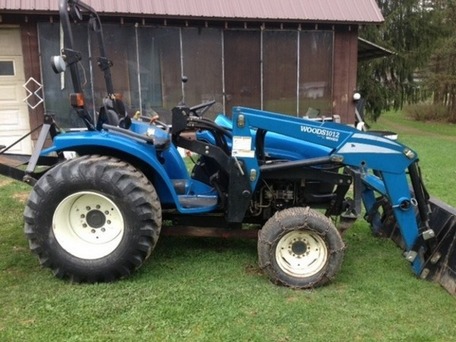

New Holland TC25

Production: 1999 - 2003

Production
Manufacturer:	New Holland
Type:	Compact Utility tractor
Original price:	$16,000 (2000 )
The New Holland TC25D was available only in four-wheel drive and with the hydrostatic transmission.

Variants
TC25:	base model
TC25D:	deluxe

New Holland TC25 Power
Engine (gross):	25 hp 18.6 kW
Gear PTO (claimed):	21.7 hp 16.2 kW
Hydro PTO (claimed):	20.3 hp 15.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Cab:	Two-post ROPS.
Transmissions:	9-speed gear
hydrostatic

Hydraulics
TC25 Pump flow:	6.1 gpm 23.1 lpm
TC25D Pump flow:	7.1 gpm 26.9 lpm
TC25 Total flow:	10.1 gpm 38.2 lpm
TC25D Total flow:	12.7 gpm 48.1 lpm
TC25 Steering flow:	3.5 gpm 13.2 lpm
TC25D Steering flow:	5.1 gpm 19.3 lpm

Tractor hitch
Rear Type:	1
Rear lift (at 24"/610mm):	1,635 lbs 741 kg

Power Take-off (PTO)
Gear Rear PTO:	transmission
Hydro Rear PTO:	live
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibura
diesel
3-cylinder
liquid-cooled
Displacement:	81.2 ci 1.3 L
Power (gross):	25 hp 18.6 kW
Rated RPM:	2600
Starter volts:	12

Dimensions
Wheelbase:	63 inches 160 cm
SuperSteer Wheelbase:	72 inches 182 cm
2WD Length:	106.6 inches 270 cm
4WD Length:	106.2 inches 269 cm
SuperSteer Length:	115.3 inches 292 cm
Width:	54.3 inches 137 cm
Height (ROPS):	87.8 inches 223 cm
Ground clearance:	14 inches 35 cm
Front axle:	2WD
Front axle:	4WD
Front tread:	43.4 inches 110 cm
Rear tread:	42.8 inches 108 cm
