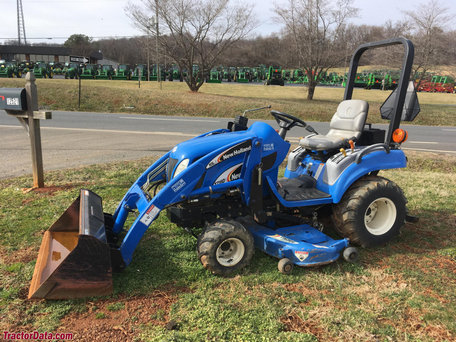

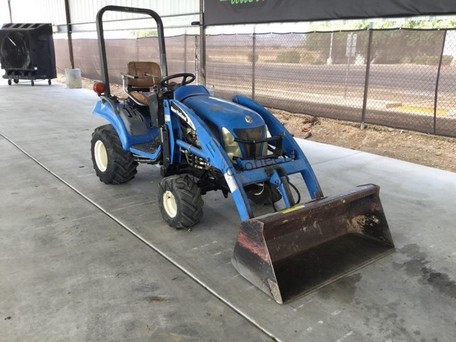

New Holland Boomer TZ18DA

Production: 2003 - 2008

Production
Manufacturer:	New Holland
Type:	Sub-Compact Utility tractor

New Holland TZ18DA Power
Engine (gross):	18 hp 13.4 kW
PTO (claimed):	13.7 hp 10.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pump flow:	3.75 gpm 14.2 lpm
Total flow:	5.6 gpm 21.2 lpm
Steering flow:	1.85 gpm 7.0 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	700 lbs 317 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540 (1.375)
Mid PTO:	standard
Mid RPM:	2200

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	36
Battery CCA:	325
Battery volts:	12

Engine Detail
Shibaura S753
diesel
3-cylinder
liquid-cooled
Displacement:	58.2 ci 1.0 L
Bore/Stroke:	2.953x2.835 inches 75 x 72 mm
Power (gross):	18 hp 13.4 kW
Pre-heating:	glow plugs
Rated RPM:	3000
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Weight:	1311 lbs 594 kg
