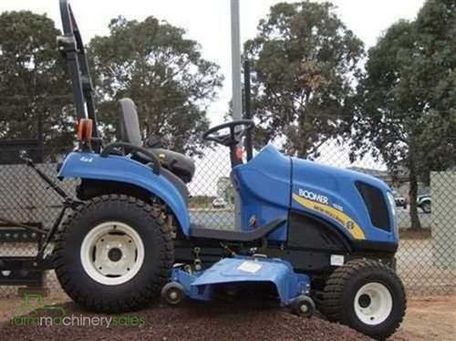

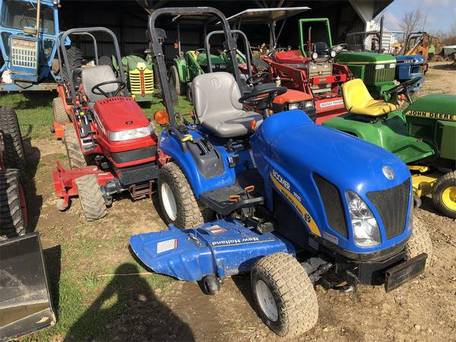

New Holland Boomer 1020

Production: 2008 - 2011

Production
Manufacturer:	New Holland
Type:	Sub-Compact Utility tractor
Original price:	$10,560 (2009)

New Holland Boomer 1020 Power
Engine (gross):	20 hp 14.9 kW
PTO (claimed):	15.5 hp 11.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	mechanical wet disc
Cab:	Foldable ROPS. Canopy optional.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pressure:	1849 psi 127.5 bar
Pump flow:	3.75 gpm 14.2 lpm
Total flow:	5.6 gpm 21.2 lpm
Steering flow:	1.85 gpm 7.0 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	1,580 lbs 716 kg
Rear lift (at 24"/610mm):	700 lbs 317 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540
Mid PTO:	independent
Mid RPM:	2,200

Electrical
Charging system:	alternator
Charging amps:	40
Battery CCA:	325
Battery volts:	12

Engine Detail
Shibaura ISM-S753
diesel
3-cylinder
liquid-cooled
Displacement:	58.2 ci 1.0 L
Power (gross):	20 hp 14.9 kW
Pre-heating:	glow plugs
Rated RPM:	3000
Starter:	electric
Starter volts:	12
Oil capacity:	4.2 qts 4.0 L

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse

Dimensions
Wheelbase:	55.1 inches 139 cm
Length:	96.6 inches 245 cm
Width:	46.4 inches 117 cm
Height (ROPS):	72.4 inches 183 cm
Weight:	1,455 lbs 659 kg
Ground clearance:	7.3 inches 18 cm
Front tread:	36.4 inches 92 cm
Rear tread:	33.9 inches 86 cm
