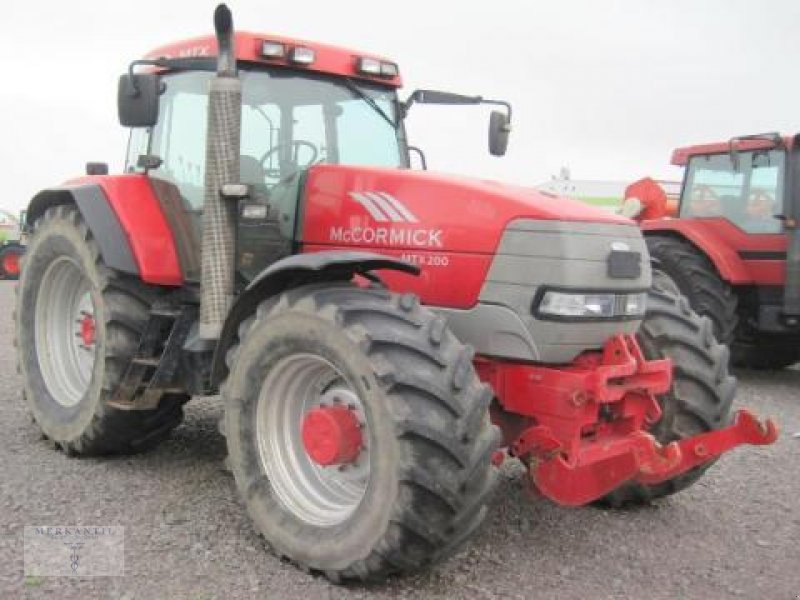

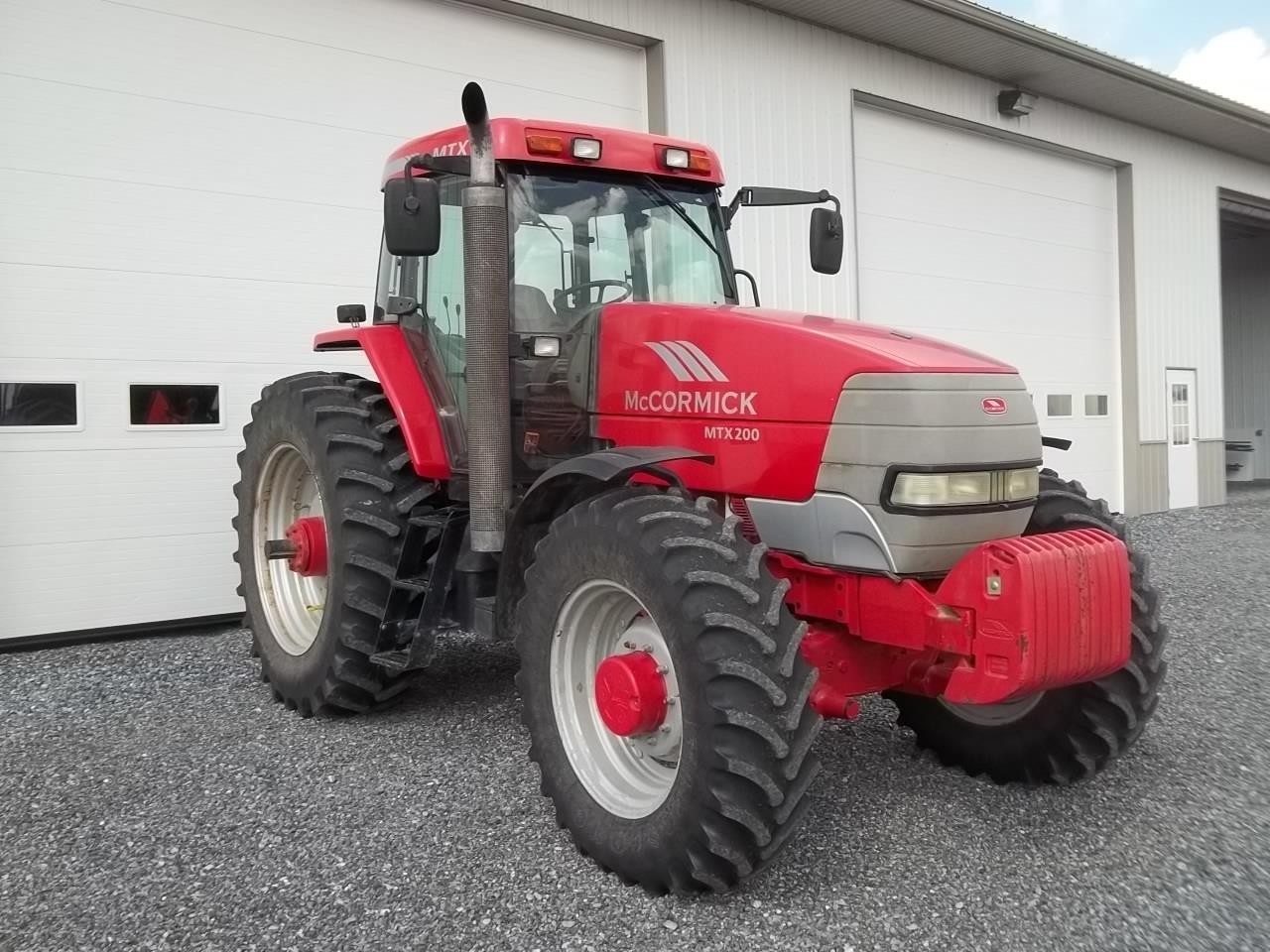

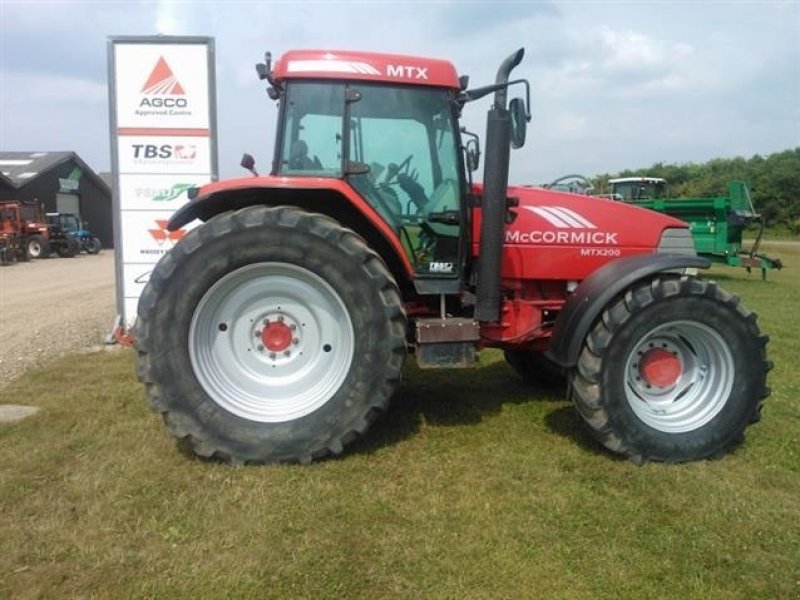

McCormick Intl MTX200

Production: 2003 - 2005

Production
Manufacturer:	McCormick Intl
Type:	Row-Crop tractor
Factory:	Doncaster, England

McCormick Intl MTX200 Power
Engine:	204 hp 152.1 kW
PTO (claimed):	170 hp 126.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	16-speed
32-speed

Hydraulics
Type:	pressure flow compensating
Pump flow:	32.0 gpm 121.1 lpm

Tractor hitch
Rear Type:	III
Control:	electronic lower link draft sensing
Rear lift:	24144 lbs 10951 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	95
120 (optional)
Battery volts:	12

Engine Detail
Cummins QSB
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	359 ci 5.9 L
Bore/Stroke:	4.02x4.72 inches 102 x 120 mm
Power:	204 hp 152.1 kW
Rated RPM:	2200
Torque:	590 lb-ft 800.0 Nm
Torque RPM:	1200
Starter volts:	12

Dimensions
Wheelbase:	112.99 inches 286 cm
Length:	205.91 inches 523 cm
Weight:	17000 lbs 7711 kg
