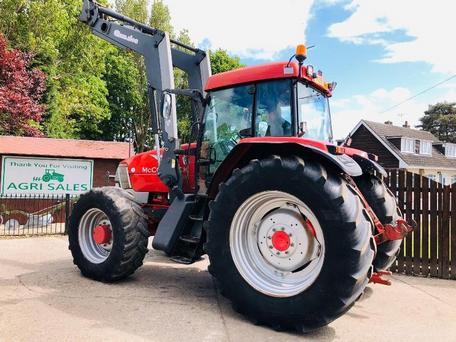

McCormick Intl MTX165

Production: 2004 - 2005

Production
Manufacturer:	McCormick Intl
Type:	Row-Crop tractor
Factory:	Doncaster, England

McCormick Intl MTX165 Power
Engine:	160 hp 119.3 kW
PTO (claimed):	141 hp 105.1 kW
Drawbar (tested):	141.1 hp 105.2 kW
PTO (tested):	178.0 hp 132.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	16-speed
32-speed

Hydraulics
Type:	pressure flow compensating
Pump flow:	32.0 gpm 121.1 lpm

Tractor hitch
Rear Type:	III
Control:	electronic lower link draft sensing
Rear lift:	18361 lbs 8328 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	95
120 (optional)
Battery volts:	12

Engine Detail
Iveco
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	411.88 ci 6.8 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Power:	160 hp 119.3 kW
Rated RPM:	2200
Torque:	482.4 lb-ft 654.1 Nm
Torque RPM:	1600
Starter volts:	12

Dimensions
Wheelbase:	112.99 inches 286 cm
Length:	205.91 inches 523 cm
Weight:	16,185 lbs 7341 kg
