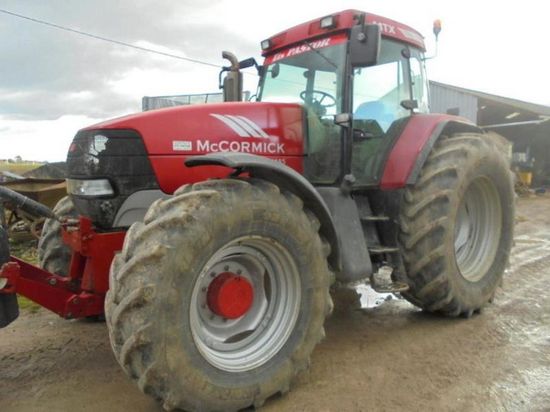

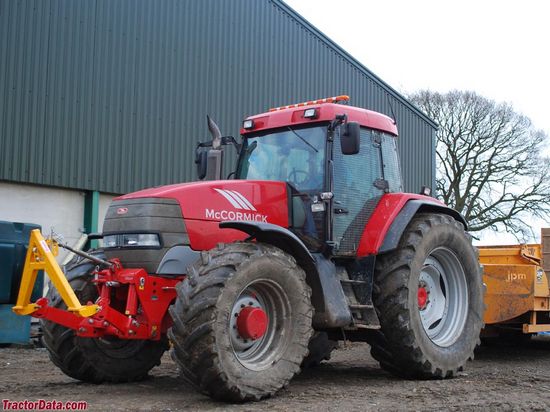

McCormick Intl MTX185

Production: 2004 - 2005

Production
Manufacturer:	McCormick Intl
Type:	Row-Crop tractor
Factory:	Doncaster, England
The McCormick MTX185 is similar to the McCormick XTX200.

McCormick Intl MTX185 Power
Engine:	195.8 hp 146.0 kW
PTO (claimed):	160 hp 119.3 kW
Drawbar (tested):	140.38 hp 104.7 kW
PTO (tested):	192.3 hp 143.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	16-speed
32-speed eight-speed power shift

Hydraulics
Type:	pressure flow compensating
Pump flow:	32.0 gpm 121.1 lpm

Tractor hitch
Rear Type:	III
Control:	electronic lower link draft sensing
Rear lift:	18361 lbs 8328 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	95
120 (optional)
Battery volts:	12

Engine Detail
Iveco
turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	410.6 ci 6.7 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Power:	195.8 hp 146.0 kW
Air cleaner:	dual paper elements
Compression:	17.5:1
Rated RPM:	2200
Torque:	590.1 lb-ft 800.2 Nm
Torque RPM:	1400
Starter volts:	12

Dimensions
Wheelbase:	113.1 inches 287 cm
Length:	205.91 inches 523 cm
Weight:	16,010 lbs 7262 kg
Shiping weight:	15,880 lbs 7203 kg
