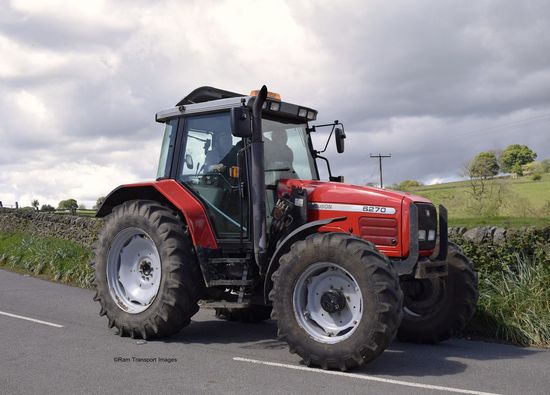

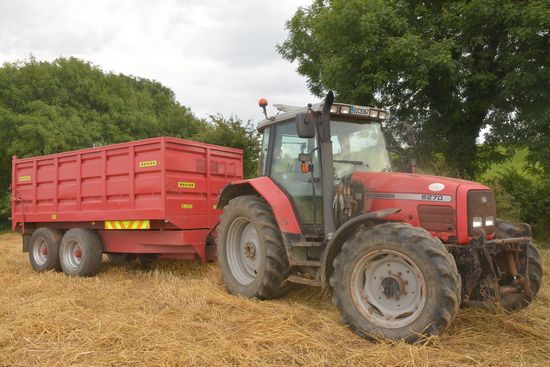

Massey Ferguson 6270

Production: 1999 - 2003

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Beauvais, France
Original price:	$48,400

Massey Ferguson 6270 Power
PTO (claimed):	100 hp 74.6 kW
Drawbar (tested):	98.8 hp 73.7 kW
PTO (tested):	103.9 hp 77.5 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard. Two-post ROPS platform available. Fieldstar optional
Transmission:	32-speed four-speed power shift

Capacity
Fuel:	59 gal 223.3 L
Hydraulic system:	16.4 gal 62.1 L

Hydraulics
Type:	open center
closed center pressure flow compensated optional
Capacity:	16.4 gal 62.1 L
Valves:	2
Pump flow:	14.9 gpm 56.4 lpm

Tractor hitch
Rear Type:	II
Rear lift:	7000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative

Engine Detail
Perkins
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	365.2 ci 6.0 L
Bore/Stroke:	3.937x5.00 inches 100 x 127 mm
Compression:	16.0:1
Rated RPM:	2200
Starter volts:	12
Coolant capacity:	26.4 qts 25.0 L

Transmission
Transmission:	Dynashift
Type:	four-speed power shift
Gears:	32 forward and reverse
Clutch:	wet disc
Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).

Dimensions
Wheelbase:	106.3 inches 270 cm
Length:	173 inches 439 cm
Height (cab):	111 inches 281 cm
Operating weight:	9,600 lbs 4354 kg (2WD)
10,540 lbs 4780 kg (4WD)
