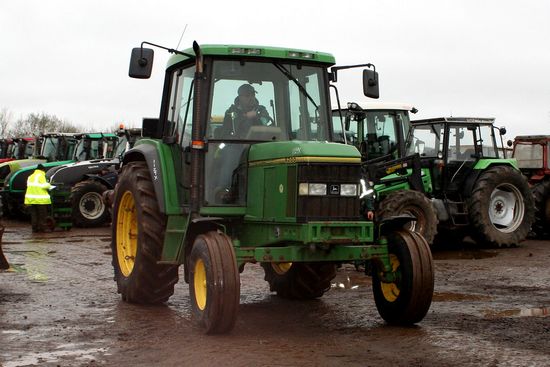

Deere 6200
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Utility tractor |
| Factory: | Mannheim, Baden-Württemberg, Germany |
| Original price: | $31,000 (1998 ) |
Variants | |
| utility tractor | |
| low-profile |
John Deere 6200 Power | |
| Engine (gross): | 89 hp 66.4 kW |
| Drawbar (claimed): | 53 hp 39.5 kW |
| PTO (claimed): | 66 hp 49.2 kW |
| Drawbar (tested): | 53.40 hp 39.8 kW |
| PTO (tested): | 68.30 hp 50.9 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Two-post foldable ROPS. ComfortGard Cab optional. |
| Transmissions: | 12-speed fully synchronized |
| 16-speed partial power shift | |
| 21-speed partially synchronized | |
| 28-speed partial power shift | |
Capacity | |
| ROPS Fuel: | 29 gal 109.8 L |
| Cab Fuel: | 42 gal 159.0 L |
| Hydraulic system: | 12.4 gal 46.9 L |
Hydraulics | |
| Type: | closed-center pressure flow compensated (PFC) |
| Capacity: | 12.4 gal 46.9 L |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 1 to 4 |
| Total flow: | 18 gpm 68.1 lpm |
| 25 gpm 94.6 lpm *Optional | |
Tractor hitch | |
| Rear Type: | II |
| Control: | lower link draft sensing |
| Rear lift (at ends): | 5,020 lbs 2277 kg |
| Rear lift (at 24"/610mm): | 4,745 lbs 2152 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| 540/1000*Optional | |
6200 Serial Numbers | |
| Location: | Serial number plate on the right side of the John Deere 6200 tractor frame, above the front axle. |
Engine Detail | |
| John Deere CD4039 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 239 ci 3.9 L |
| Bore/Stroke: | 4.19x4.33 inches 106 x 110 mm |
| Power (gross): | 89 hp 66.4 kW |
| Rated RPM: | 2300 |
| Idle RPM: | 1840-2300 |
| Starter volts: | 12 |
| Oil capacity: | 12.8 qts 12.1 L |
| ROPS Coolant capacity: | 14.5 qts 13.7 L |
| Cab Coolant capacity: | 18.5 qts 17.5 L |
Dimensions | |
| Wheelbase: | 94.6 inches 240 cm |
| Length: | 165 inches 419 cm |
| Width: | 85.7 inches 217 cm |
| Clearance (front axle): | 22.8 inches 57 cm (2WD) |
| 18 inches 45 cm (4WD) | |
