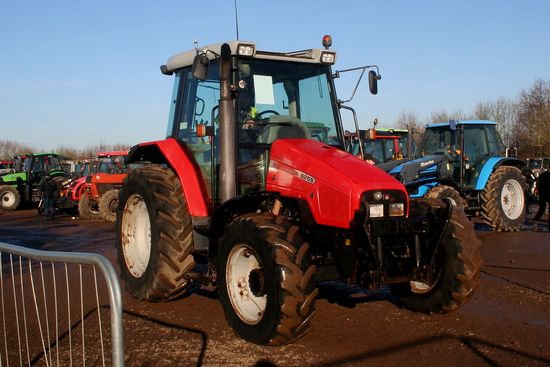

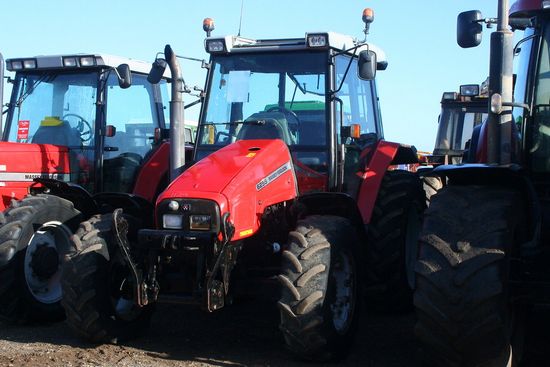

Massey Ferguson 6255

Production: 1999 - 2003

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Factory:	Beauvais, France
Original price:	$52,500

Massey Ferguson 6255 Power
PTO (claimed):	85 hp 63.4 kW
Drawbar (tested):	74.2 hp 55.3 kW
PTO (tested):	85.3 hp 63.6 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	independent hydraulic wet disc
Cab:	Cab standard. Two-post ROPS platform available. Fieldstar optional
Transmission:	32-speed four-speed power shift

Capacity
Fuel:	42 gal 159.0 L
Hydraulic system:	18 gal 68.1 L

Hydraulics
Type:	open center
closed center pressure flow compensated*Optional
Capacity:	18 gal 68.1 L
Valves:	2
Pump flow:	14.9 gpm 56.4 lpm

Tractor hitch
Rear Type:	II
Rear lift:	7000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative

Engine Detail
Perkins
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	244 ci 4.0 L
Bore/Stroke:	3.937x5.00 inches 100 x 127 mm
Compression:	17.3:1
Rated RPM:	2200
Starter volts:	12
Coolant capacity:	18 qts 17.0 L

Transmission
Transmission:	Dynashift
Type:	four-speed power shift
Gears:	32 forward and reverse
Clutch:	wet disc
Four power shift ranges (A-D) in four gears (1-4) with two ranges (low/high).

Dimensions
Wheelbase:	100.5 inches 255 cm
Operating weight:	9,820 lbs 4454 kg (4WD)
