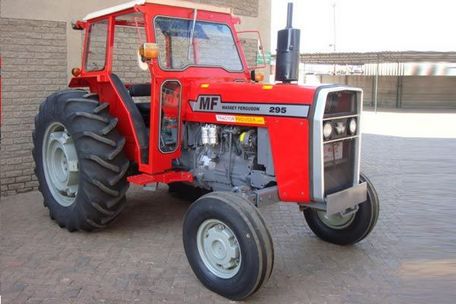

Massey Ferguson 295

Production: 1978 - 1990

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor

Massey Ferguson 295 Power
Engine:	105 hp 78.3 kW
PTO (claimed):	74 hp 55.2 kW *At 540 RPM.

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	mechnical wet disc
Cab:	Two-post ROPS.
Transmission:	8-speed

Hydraulics
Pressure:	2987 psi 206.0 bar
Pump flow:	4.5 gpm 17.0 lpm

Tractor hitch
Rear lift:	5512 lbs 2500 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1700

Electrical
Charging system:	alternator
Charging amps:	35
Battery volts:	12
Battery AH:	135

Engine Detail
Perkins A6.358
diesel
6-cylinder
liquid-cooled
Displacement:	358 ci 5.9 L
Bore/Stroke:	4.10x4.50 inches 104 x 114 mm
Power:	105 hp 78.3 kW
Fuel system:	direct injection
Air cleaner:	dual dry element
Compression:	14:1
Rated RPM:	2200
Torque:	258.2 lb-ft 350.1 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12
Oil capacity:	13.75 qts 13.0 L
Coolant capacity:	23.4 qts 22.1 L

Transmission
Gears:	8 forward and 2 reverse
Clutch:	330mm cerametallic disc
Oil capacity:	40.2 qts 38.0 L

Dimensions
Wheelbase:	97.6 inches 247 cm
Length:	163 inches 414 cm
Height (steering wheel):	70.9 inches 180 cm
Weight:	8378 lbs 3800 kg
Front tread:	54.3 to 78.4 inches 137 to 199 cm
Rear tread:	55.9 to 92.1 inches 141 to 233 cm
