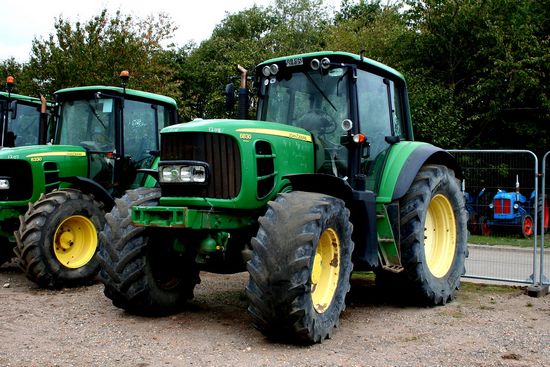

John Deere 6830 Premium
Contents:
Production | |
| Manufacturer: | John Deere |
John Deere 6830 Premium Power | |
| Engine (gross): | 140 hp 104.4 kW |
| Engine (net): | 135 hp 100.7 kW |
| Engine (max): | 150 hp 111.9 kW |
| PTO (claimed): | 121 hp 90.2 kW |
| Boost PTO (claimed): | 143 hp 106.6 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Brakes: | hydraulic wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 20-speed partial power shift |
| 32-speed partial power shift | |
| infinitely variable transmission (IVT) | |
Capacity | |
| Fuel: | 66 gal 249.8 L |
| Optional Fuel: | 85.9 gal 325.1 L |
| Hydraulic system: | 14.8 gal 56.0 L |
| IVT Hydraulic system: | 17.4 gal 65.9 L |
Hydraulics | |
| Type: | load-sensing pressure-flow compensating (PFC) |
| Capacity: | 14.8 gal 56.0 L |
| IVT Capacity: | 17.4 gal 65.9 L |
| Pressure: | 2,901 psi 200.0 bar |
| Valves: | 4 (Max) |
| Pump flow: | 15.9 gpm 60.2 lpm |
| Optional Pump flow: | 29.1 gpm 110.1 lpm |
Tractor hitch | |
| Rear Type: | IIIN |
| Control: | 15.9 |
| Optional Control: | 29.1 |
| Rear lift (at ends): | 18,880 lbs 8563 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet disc |
| Rear RPM: | 540/540E/1000 |
| Engine RPM: | 540@1995 540E@1743 1000@1995 |
| Front RPM: | 1000 |
| Engine RPM: | 1000@1995 |
6830 Premium Serial Numbers | |
| Location: | Front-right side of main tractor frame, above front axle. |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| John Deere 6068HL480 | |
| turbocharged diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 413.7 ci 6.8 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Tier III |
| Emission control: | exhaust gas recirculation (EGR) |
| Rated Power (ECE R24): | 135 hp 100.7 kW |
| Rated Power (EC 97/98): | 140 hp 104.4 kW |
| Maximum Power (ECE R24): | 145 hp 108.1 kW |
| Maximum Power (EC 97/68): | 150 hp 111.9 kW |
| Fuel system: | high-pressure common rail injection |
| Cooling system: | viscous fan |
| Air cleaner: | dry element |
| Rated RPM: | 2100 |
| Idle RPM: | 845-2255 |
| Operating RPM: | 1300-2100 |
| Torque: | 457 lb-ft 619.7 Nm |
| Torque RPM: | 1400 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Oil capacity: | 20.6 qts 19.5 L |
| Oil change: | 500 h |
| Coolant capacity: | 29.6 qts 28.0 L |
| Coolant change: | 1500 h |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |
Dimensions | |
| Wheelbase: | 104.3 inches 264 cm |
| Length: | 187.3 inches 475 cm |
| Width: | 93.8 inches 238 cm |
| Height: | 114.4 inches 290 cm |
| Front tread: | 63.9 to 83.3 inches 162 to 211 cm |
| Rear tread: | 63.9 to 79.6 inches 162 to 202 cm |
