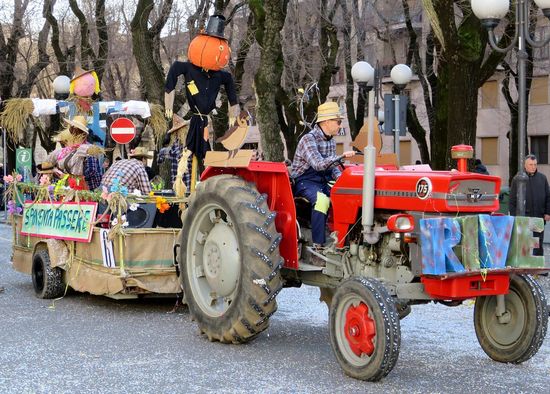

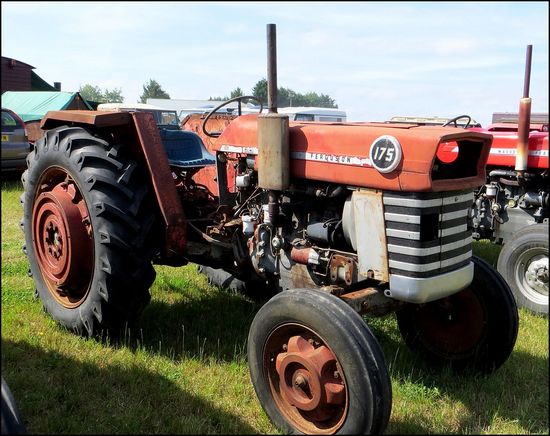

Massey Ferguson 175

Production: 1964 - 1975

Production
Manufacturer:	Massey Ferguson
Original price:	$7,500 (1975 )

Massey Ferguson 175 Power
Drawbar (claimed):	54 hp 40.3 kW
PTO (claimed):	63 hp 47.0 kW
Drawbar (tested):	53.51 hp 39.9 kW
PTO (tested):	63.34 hp 47.2 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power assist
Brakes:	mechanical disc
Cab:	Open operator station
Transmissions:	12-speed partial power shift
6-speed
8-speed

Hydraulics
Type:	open center
Valves:	0 to 2

Tractor hitch
Rear Type:	II
Rear lift:	3,370 lbs 1528 kg

Power Take-off (PTO)
Rear PTO:	live*Two-stage clutch
independent*Optional.
Rear RPM:	540
Engine RPM:	540@1700

175 Serial Numbers
Location:	Below instrument panel on steering column
1964:	644000001
1965:	644001494
1966:	644003041
1967:	9A1000
1968:	9A39836
1969:	9A63158
1970:	9A87325
1971:	9A107597
1972:	9A128141
1973:	9A152025
1974:	9A179544
1975:	9A207681

Engine Detail
Perkins A4.236
diesel
4-cylinder
liquid-cooled
Displacement:	236 ci 3.9 L
Bore/Stroke:	3.875x5.00 inches 98 x 127 mm
Air cleaner:	dry
Compression:	16:1
Rated RPM:	2000
Starter volts:	12
Oil capacity:	8.6 qts 8.1 L
Coolant capacity:	13.4 qts 12.7 L

Dimensions
Wheelbase:	81.9 inches 208 cm
Length:	138 inches 350 cm
Width:	72.8 inches 184 cm
Height (steering wheel):	65 inches 165 cm
Ground clearance:	13.4 inches 34 cm
