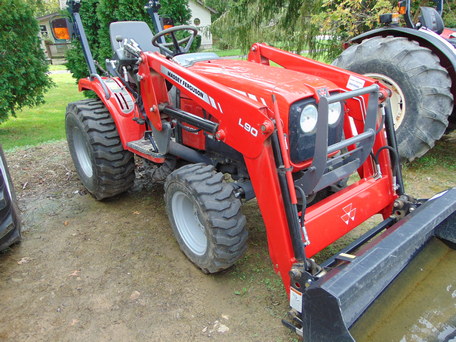

Massey Ferguson 1526

Production: 2011 - 2022

Production
Manufacturer:	Massey Ferguson (a part of AGCO)
Type:	Compact Utility tractor

Massey Ferguson 1526 Power
Engine (gross):	24.8 hp 18.5 kW
PTO (claimed):	20.1 hp 15.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Mid valves:	2
Pump flow:	5.5 gpm 20.8 lpm
Total flow:	8.7 gpm 32.9 lpm
Steering flow:	3.2 gpm 12.1 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	1322 lbs 599 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)
Mid PTO:	independent
Mid RPM:	2000

Electrical
Ground:	negative
Charging system:	alternator
Battery volts:	12

Engine Detail
Iseki
2600 diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.43x3.31 inches 87 x 84 mm
Power (gross):	24.8 hp 18.5 kW
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	61.4 inches 155 cm
Length:	111 inches 281 cm
Width:	49.2 inches 124 cm
Height (ROPS):	95.5 inches 242 cm
Shiping weight:	1873 lbs 849 kg
Ground clearance:	11 inches 27 cm
