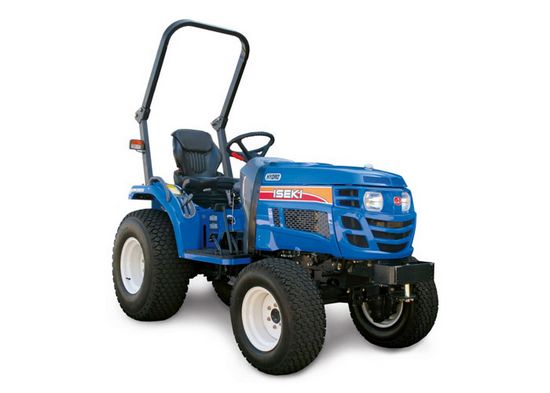

Iseki TM3265

Production: 2010

Production
Manufacturer:	Iseki
Type:	Compact Utility tractor

Iseki TM3265 Power
Engine:	25.7 hp 19.2 kW
PTO (claimed):	20.1 hp 15.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	standard
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmissions:	8-speed gear
hydrostatic

Hydraulics
Type:	open center
Pump flow:	5.52 gpm 20.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift:	1323 lbs 600 kg

Power Take-off (PTO)
Rear PTO:	independent (hydro)
Clutch:	mechanical (gear)
electro-hydraulic (hydro)
Rear RPM:	540 (1.375)
Engine RPM:	567@2600 (gear) 571@2600 (hydro)
Mid RPM:	2000
Engine RPM:	2032@2600 (gear) 2129@2600 (hydro)

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Iseki E3CD
diesel
3-cylinder
liquid-cooled
Displacement:	91.4 ci 1.5 L
Bore/Stroke:	3.43x3.30 inches 87 x 84 mm
Power:	25.7 hp 19.2 kW
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	61.42 inches 156 cm
Length:	113 inches 287 cm
Width:	43.7 inches 110 cm
Weight:	1896 lbs 860 kg (gear)
1907 lbs 865 kg (hydro)
Ground clearance:	9.8 inches 24 cm
