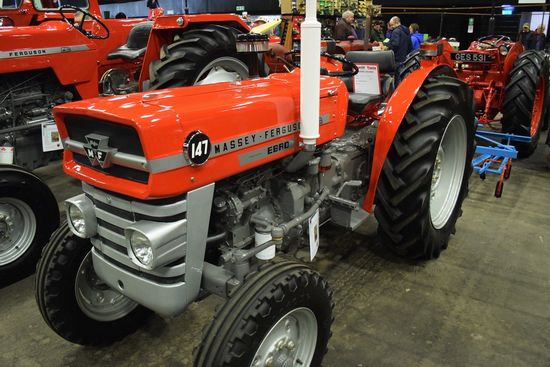

Massey Ferguson 147

Production: 1980

Production
Manufacturer:	Massey Ferguson
Factory:	Spain

Massey Ferguson 147 Power
PTO (claimed):	45 hp 33.6 kW

Mechanical
Chassis:	4x2 2WD
Brakes:	drum
Cab:	Open operator station.
Transmission:	8-speed

Capacity
Fuel:	10.2 gal 38.6 L
Hydraulic system:	7.9 gal 29.9 L

Hydraulics
Capacity:	7.9 gal 29.9 L

Power Take-off (PTO)
Rear PTO:	live (two-stage clutch)
Rear RPM:	540

Engine Detail
Perkins AD3.152S
diesel
3-cylinder
liquid-cooled
Displacement:	152 ci 2.5 L
Bore/Stroke:	3.6x5.0 inches 91 x 127 mm
Air cleaner:	oil bath
Compression:	18.5:1
Starter volts:	12
Oil capacity:	6.3 qts 6.0 L
Coolant capacity:	10.9 qts 10.3 L

Transmission
Gears:	8 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	72 inches 182 cm
Length:	118.1 inches 299 cm
Width:	49 inches 124 cm
Height (steering wheel):	54.7 inches 138 cm
Front tread:	39.8 to 51.2 inches 101 to 130 cm
Rear tread:	36.6 to 51.2 inches 92 to 130 cm
