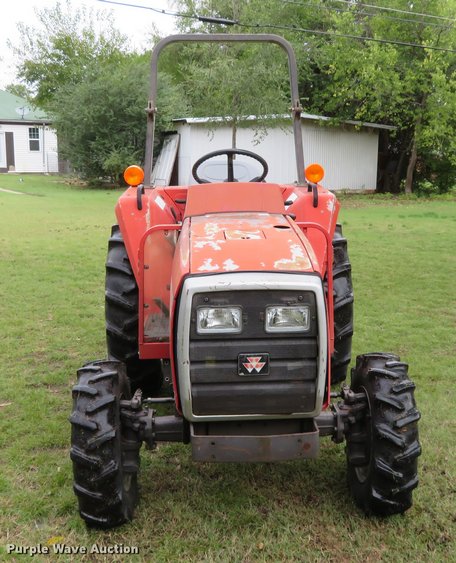

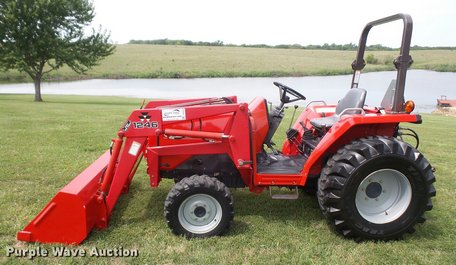

Massey Ferguson 1240
Type: Compact Utility Tractors
Contents:
Production | |
| Distributor: | Massey Ferguson |
| Manufacturer: | Iseki |
| Type: | Compact Utility tractor |
| Original price: | $15,000 (1999 ) |
| The Massey Ferguson 1240 is similar to the Iseki model TK527. | |
Variants | |
| 1240-2: | 2WD |
Massey Ferguson 1240 Power | |
| Engine (gross): | 30 hp 22.4 kW |
| Engine (net): | 28 hp 20.9 kW |
| PTO (claimed): | 23.1 hp 17.2 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power assist |
| Brakes: | wet disc |
| Cab: | Two-post foldable ROPS. |
| Transmission: | 16-speed synchro shuttle |
Capacity | |
| Fuel: | 7.9 gal 29.9 L |
| Hydraulic system: | 6.1 gal 23.1 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 6.1 gal 23.1 L |
| Pump flow: | 6.0 gpm 22.7 lpm |
| Total flow: | 9.2 gpm 34.8 lpm |
| Steering flow: | 3.2 gpm 12.1 lpm |
Tractor hitch | |
| Rear Type: | I |
| Control: | position control |
| Rear lift (at ends): | 2866 lbs 1300 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic |
| Rear RPM: | 540 (1.375) |
| Engine RPM: | 540@2389 |
| Mid PTO: | independent (optional) |
| Clutch: | electro-hydraulic |
| Mid RPM: | 1885 |
| Engine RPM: | 1885@2500 |
1240 Serial Numbers | |
| 1992: | A00001 |
| 1993: | B00001 |
| 1994: | C00001 |
| 1995: | D00001 |
| 1996: | E00001 |
| 1997: | FF00001 |
| 1998: | GF00001 |
| 1999: | HF00001 |
| 2000: | JF00001 |
| 2001: | KF00001 |
Electrical | |
| Ground: | negative |
| Battery volts: | 12 |
Engine Detail | |
| Iseki TK527 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 89.3 ci 1.5 L |
| Power (gross): | 30 hp 22.4 kW |
| Fuel system: | indirect injection |
| Air cleaner: | dry |
| Pre-heating: | glow plugs |
| Compression: | 21.5:1 |
| Rated RPM: | 2500 |
| Torque: | 69 lb-ft 93.6 Nm |
| Torque RPM: | 1500 |
| Starter volts: | 12 |
| Coolant capacity: | 6.92 qts 6.5 L |
Transmission | |
| Type: | synchro shuttle |
| Gears: | 16 forward and reverse |
| Clutch: | 225mm dry disc |
| Four gears in four ranges with shuttle. | |
Dimensions | |
| Wheelbase: | 64.6 inches 164 cm |
| Length: | 118.7 inches 301 cm |
| Width: | 55.1 inches 139 cm (min) |
| Height (ROPS): | 84.2 inches 213 cm |
| 67.7 inches 171 cm (folded) | |
| Shipping weight: | 2535 lbs 1149 kg (2WD) |
| 2645 lbs 1199 kg (4WD) | |
| Ground clearance: | 11.8 inches 29 cm |
| Front tread: | 37.5 to 41.7 inches 95 to 105 cm (2WD) |
| Front tread: | 41.7 inches 105 cm (4WD) |
| Rear tread: | 43.3 to 55.9 inches 109 to 141 cm |
