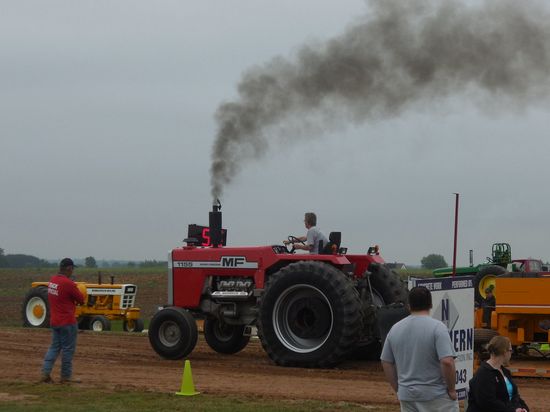

Massey Ferguson 1155

Production: 1973 - 1978

Production
Manufacturer:	Massey Ferguson
Type:	Row-Crop tractor
Original price:	$25,000 (1978 )

Massey Ferguson 1155 Power
Drawbar (claimed):	117 hp 87.2 kW
PTO (claimed):	140 hp 104.4 kW
Drawbar (tested):	117.8 hp 87.8 kW
PTO (tested):	140.97 hp 105.1 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard.
Transmissions:	12-speed two-speed power shift
8-speed gear

Capacity
Fuel:	55 gal 208.2 L
Hydraulic system:	22 gal 83.3 L

Hydraulics
Type:	closed center
Capacity:	22 gal 83.3 L
Pressure:	2100 psi 144.8 bar
Pump flow:	20 gpm 75.7 lpm

Tractor hitch
Rear Type:	II/III
Control:	position and draft control

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
Engine RPM:	540@2000 1000@2000

1155 Serial Numbers
Location:	Ahead of instrument panel on left side.
1972:	9B36563
1973:	9B36851
1974:	9B42685
1975:	9B50494
1976:	9B58735
1977:	9B66276
1978:	9B74241
1979:	9B76058

Electrical
Charging system:	alternator
Battery volts:	12

Engine Detail
Perkins AV8.540
diesel
8-cylinder
liquid-cooled
Displacement:	540 ci 8.9 L
Bore/Stroke:	4.25x4.75 inches 108 x 121 mm
Fuel system:	direct injection
Air cleaner:	dry
Compression:	17.5:1
Rated RPM:	2200
Starter volts:	12
Oil capacity:	20 qts 18.9 L
Coolant capacity:	50 qts 47.3 L

Dimensions
Wheelbase:	109 inches 276 cm
Length:	180 inches 457 cm
Clearance (front axle):	26.3 inches 66 cm
Clearance (drawbar):	16.1 inches 40 cm
Rear axle:	94 inch length 2387 mm
Rear axle:	114 inch length 2895 mm
Front tread:	60 to 88 inches 152 to 223 cm
Rear tread:	60 to 120 inches 152 to 304 cm
