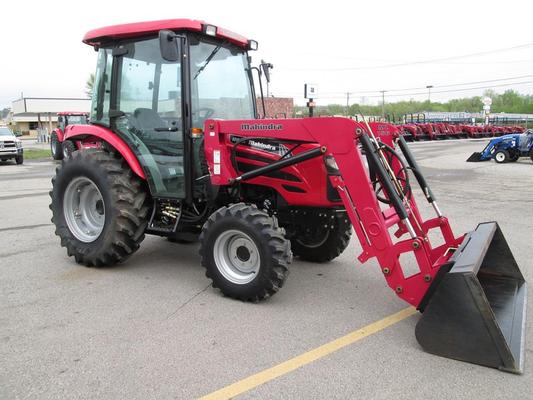

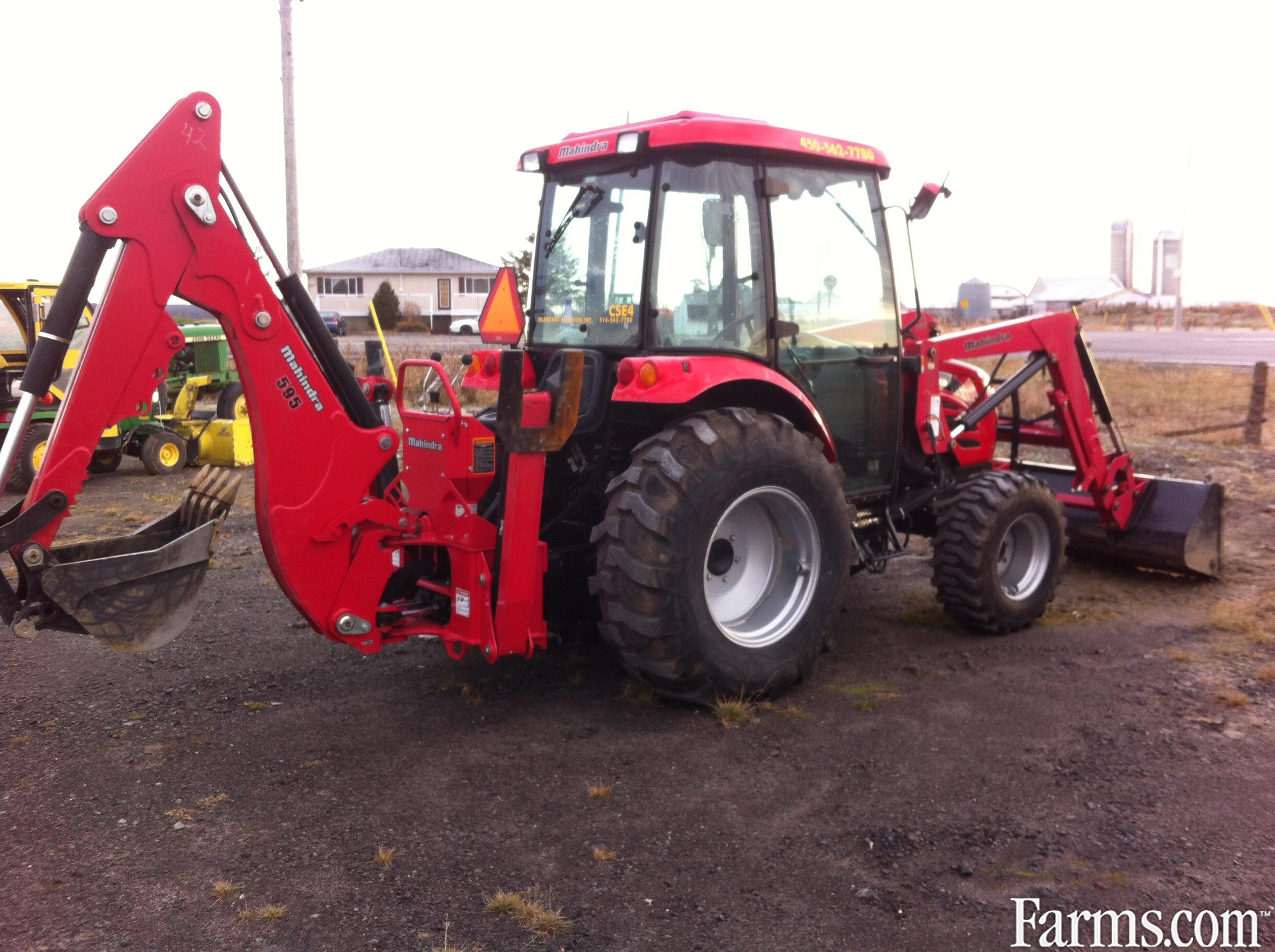

Mahindra 6010

Production: 2011 - 2015

Production
Manufacturer:	Mahindra
Type:	Compact Utility tractor

Mahindra 6010 Power
Engine:	59 hp 44.0 kW
PTO (claimed):	44 hp 32.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Valves:	1
Pump flow:	9.5 gpm 36.0 lpm
Steering flow:	5 gpm 18.9 lpm

Tractor hitch
Rear Type:	1
Control:	position control
Rear lift:	3,314 lbs 1503 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Batteries:	12
Battery volts:	12
Battery AH:	80

Engine Detail
Daedong
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	148.6 ci 2.4 L
Bore/Stroke:	3.43x4.03 inches 87 x 102 mm
Power:	59 hp 44.0 kW
Fuel system:	direct injection
Compression:	22:1
Rated RPM:	2600
Starter:	electric
Starter volts:	12

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Length:	135.3 inches 343 cm
Width:	71.1 inches 180 cm
Height (cab):	98.4 inches 249 cm
Operating weight:	4,144 lbs 1879 kg
