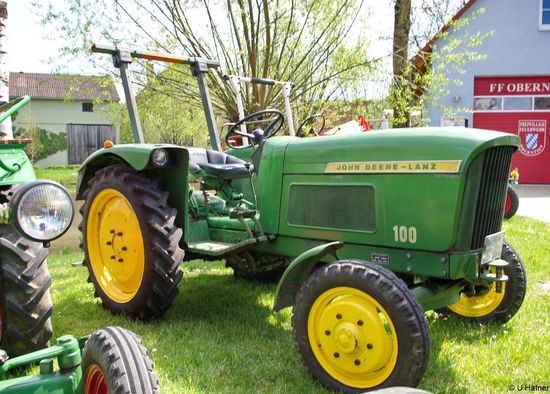

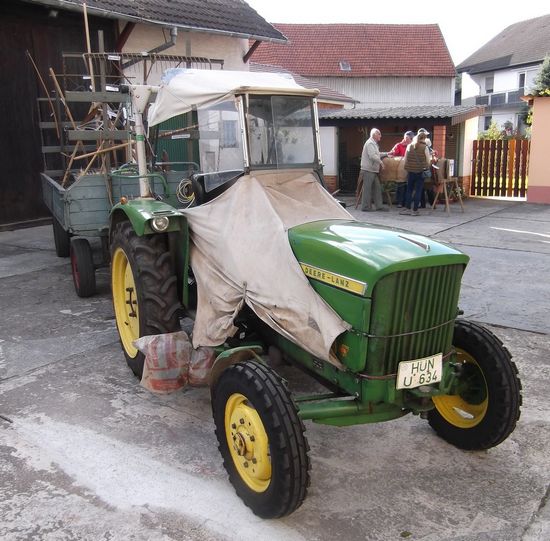

Lanz 100
Contents:
Production | |
| Manufacturer: | Lanz (a part of John Deere) |
| Factory: | Mannheim, Baden-Württemberg, Germany |
Lanz 100 Power | |
| Engine: | 18 hp 13.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | 6-speed gear |
Tractor hitch | |
| Rear Type: | II/I |
Power Take-off (PTO) | |
| Rear RPM: | 540/1000 |
| Mid PTO: | standard |
| Mid RPM: | 1000 |
100 Serial Numbers | |
| Location: | Serial number plate on right side of tractor frame, above the front axle. |
Engine Detail | |
| John Deere | |
| diesel | |
| 2-cylinder | |
| liquid-cooled | |
| Displacement: | 72.1 ci 1.2 L |
| Bore/Stroke: | 3.625x3.50 inches 92 x 89 mm |
| Power: | 18 hp 13.4 kW |
| Rated RPM: | 2500 |
Transmission | |
| Type: | gear |
| Gears: | 6 forward and 1 reverse |
Dimensions | |
| Shiping weight: | 2750 lbs 1247 kg |
