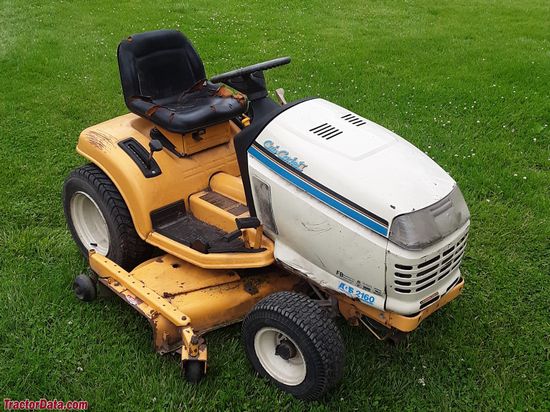

Cub Cadet AGS 2160
Contents:
2160 Serial Location | |
| Serial number plate on the left side of frame above front axle. |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton Vanguard | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement | 480 cc 29.3 ci |
| Bore/Stroke | 2.68x2.60 inches 68 x 66 mm |
| Power (gross) | 16 hp 11.9 kW |
| Rated RPM | 3600 |
| Idle RPM | 1200-3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Intake valve clearance | 0.005 inches (cold) 0.127 mm |
| Exhaust valve clearance | 0.005 inches (cold) 0.127 mm |
Transmission | |
| Transmission | Auto Gear System |
| Type | shaft-driven gear |
| Gears | 6 forward and reverse |
| Oil capacity | 6 qts 5.7 L |
| The Cub Cadet Auto Gear uses a six-speed transmission with forward and reverse foot pedals. The pedals control a clutch and should be fully depressed for whichever gear is selected. Using the pedals as a speed control will result in premature clutch failure. | |
Dimensions | |
| Wheelbase | 47 inches 119 cm |
| Length | 72 inches 182 cm |
| Width | 39 inches 99 cm |
| Height (steering wheel) | 43 inches 109 cm |
| Ground clearance | 6 inches 15 cm |
| Front tread | 31.5 inches 80 cm |
| Rear tread | 30.25 inches 76 cm |
