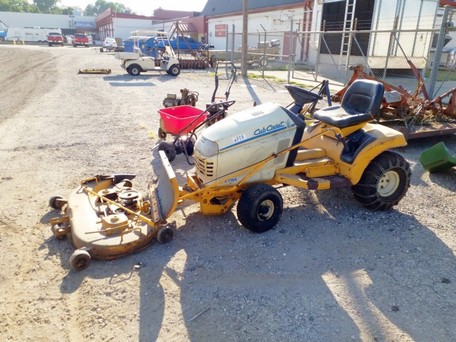

Cub Cadet 2164

Production: 2000

Production
Manufacturer:	Cub Cadet (a part of MTD)
Type:	Lawn tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	internal expanding
Cab:	Open operator station.
Transmission:	hydrostatic

Capacity
Fuel:	3 gal 11.4 L

Power Take-off (PTO)
Front PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging system:	flywheel alternator
Charging amps:	15

Engine Detail
Briggs & Stratton Vanguard
gasoline
2-cylinder
air-cooled
Displacement:	480 cc 29.3 ci
Power (gross):	16 hp 11.9 kW
Rated RPM:	3350
Idle RPM:	1200-3600
Starter:	electric
Starter volts:	12
Sparkplug:	759-3336
Sparkplug gap:	0.030 inches 0.762 mm
Intake valve clearance:	0.005 inches 0.127 mm (cold)
Exhaust valve clearance:	0.005 inches 0.127 mm (cold)

Transmission
Type:	shaft-driven hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	6 qts 5.7 L

Dimensions
Wheelbase:	47 inches 119 cm
Length:	72 inches 182 cm
Width:	51 inches 129 cm
Height (steering wheel):	42 inches 106 cm
Shipping:	775 lbs 351 kg
Ground clearance:	6 inches 15 cm
