Cub Cadet 580
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of MTD) |
| Type | Garden tractor |
Variants | |

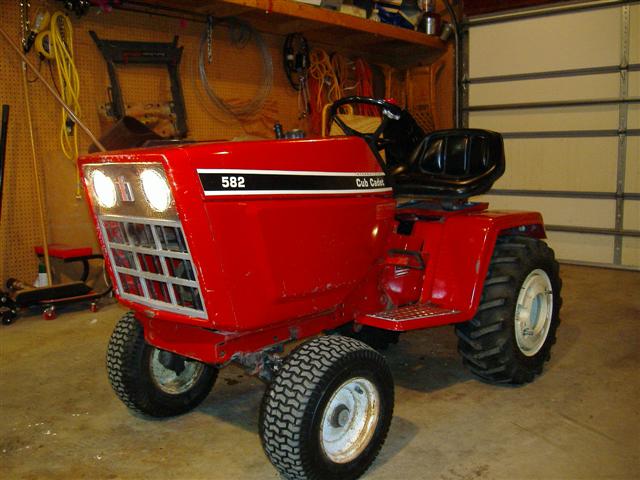

| IH red | |

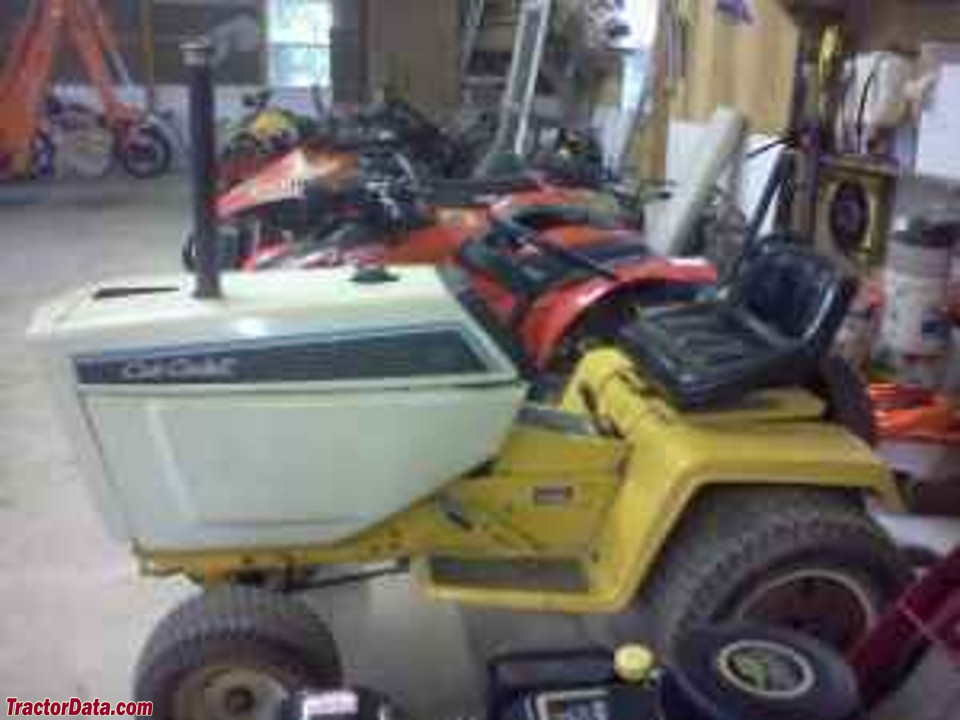

| Cub Cadet yellow | |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | disc |
| Cab | Open operator station. |
580 Serial Numbers | |
| Location: | Serial number plate on the left side of the tractor frame, above the foot rest. |
| 1982 | 700000 |
| 1983 | 712900 |
| 1984 | 724525 |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton 401417 | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement | 655 cc 40 ci |
| Bore/Stroke | 3.4375x2.156 inches 87 x 55 mm |
| Power (gross) | 16 hp 11.9 kW |
| Fuel system | downdraft carburetor with integral fuel pump |
| Idle RPM | 1200-3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Champion RJ-8 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.006 inches (cold) 0.152 mm |
| Exhaust valve clearance | 0.008 inches (cold) 0.203 mm |
Transmission | |
| Transmission | Peerless |
| Type | gear |
| Gears | 4 forward and 1 reverse |
| Clutch | belt and pulley |
| Oil capacity | 2 qts 1.9 L |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 72 inches 182 cm |
| Width | 3.25 inches 8 cm |
| Height (steering wheel) | 43 inches 109 cm |
| Ground clearance | 6 inches 15 cm |
| Front tread | 29 inches 73 cm |
| Rear tread | 26.8 inches 68 cm |
