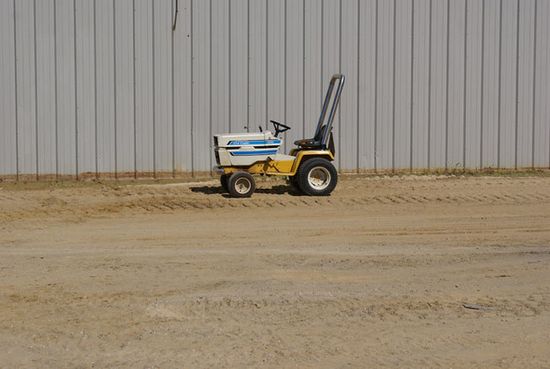

Cub Cadet 1250
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of International Harvester) |
| Type | Garden tractor |
| Factory | Louisville, Kentucky, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | dry disc |
| wet disc (after 1977) | |
| Cab | Open operator station. |
Tractor hitch | |
| Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electric |
| Front RPM | 3400 |
1250 Serial Numbers | |
| 1974 | 530001 |
| 1975 | 536073 |
| 1976 | 572840 |
| 1977 | 602118 |
| 1978 | 621744 |
| 1979 | 643507 |
1250 Serial Location |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Kohler K301AQS | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 476 cc 29.07 ci |
| Bore/Stroke | 3.375x3.25 inches 86 x 83 mm |
| Power (gross) | 12 hp 8.9 kW |
| Fuel system | Kohler side-draft carburetor |
| Air cleaner | dry |
| Rated RPM | 3400 |
| Idle RPM | 1800-3600 |
| Starter volts | 12 |
| Sparkplug | Champion H-10 |
| Sparkplug gap | 0.035 inches 0.889 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.010 inches (cold) 0.254 mm |
| Exhaust valve clearance | 0.020 inches (cold) 0.508 mm |
Transmission | |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 7 qts 6.6 L |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 69 inches 175 cm |
| Width | 37 inches 93 cm |
| Height (steering wheel) | 41 inches 104 cm |
| Shiping weight | 670 lbs 303 kg |
| Ground clearance | 6 inches 15 cm |
| Front tread | 27 inches 68 cm |
| Rear tread | 27 inches 68 cm |
