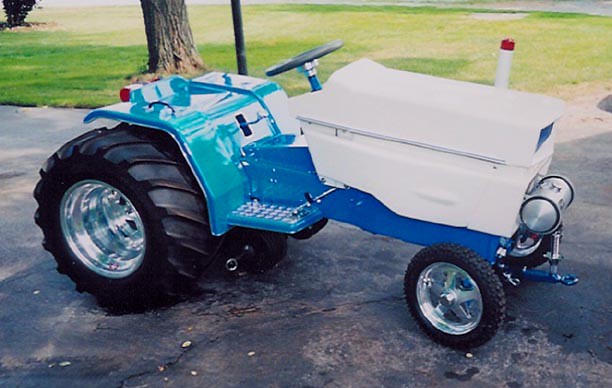

Cub Cadet 1000
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of International Harvester) |
| Type | Garden tractor |
| Factory | Louisville, Kentucky, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | dry disc |
| wet disc (after SN 568631) | |
| Cab | Open operator station. |
Tractor hitch | |
| Type | sleeve hitch (optional) |
Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear RPM | 515 (0.937) |
| Front PTO | independent |
| Clutch | electric |
| Front RPM | 3400 |
Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Kohler K241AQS | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 389 cc 23.76 ci |
| Bore/Stroke | 3.25x2.875 inches 83 x 73 mm |
| Power (gross) | 10 hp 7.5 kW |
| Fuel system | Kohler side-draft carburetor |
| Air cleaner | dry |
| Rated RPM | 3400 |
| Idle RPM | 1800-3600 |
| Starter volts | 12 |
| Sparkplug | Champion H-10 |
| Sparkplug gap | 0.035 inches 0.889 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.010 inches (cold) 0.254 mm |
| Exhaust valve clearance | 0.020 inches (cold) 0.508 mm |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 69 inches 175 cm |
| Width | 33 inches 83 cm |
| Height (steering wheel) | 41 inches 104 cm |
| Shiping weight | 630 lbs 285 kg |
| Ground clearance | 6 inches 15 cm |
| Front tread | 27 inches 68 cm |
| Rear tread | 27 inches 68 cm |
