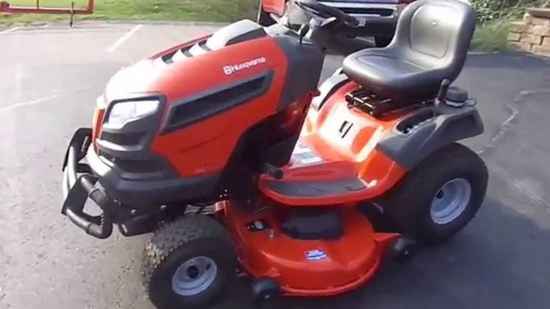

Husqvarna YT46LS

Production: 2013
Type: Lawn Tractors

Contents:

PDF

Production

Manufacturer:Husqvarna
Type:Lawn tractor
Original price:$2,200 (2013 )

Mechanical

Chassis:4x2 2WD
Cab:Open operator station with high-back seat.
Transmission:hydrostatic

Capacity

Fuel:3 gal 11.4 L

Power Take-off (PTO)

Mid PTO:independent
Clutch:electric

Electrical

Ground:negative
Charging amps:15 A

Engine Detail

Kawasaki FR651
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement:726 cc 44.3 ci
Bore/Stroke:3.071x2.992 inches 78 x 76 mm
Power (gross):21.5 hp 16.0 kW
Compression:8.2:1
Torque:39.3 lb-ft 53.3 Nm
Torque RPM:2200
Starter:electric
Starter volts:12
Sparkplug:NGK BPR4ES
Sparkplug gap:0.030 inches 0.762 mm

Transmission

Transmission:Tuff Torq K46
Type:belt-driven hydrostatic
Gears:infinite forward and reverse
Oil change:sealed unit, service not recommended

Dimensions

Wheelbase:48 inches 121 cm
Length:69.25 inches 175 cm
Width:48 inches 121 cm
Height:41.4 inches 105 cm
Weight:455 lbs 206 kg
Front axle:Cast-iron
