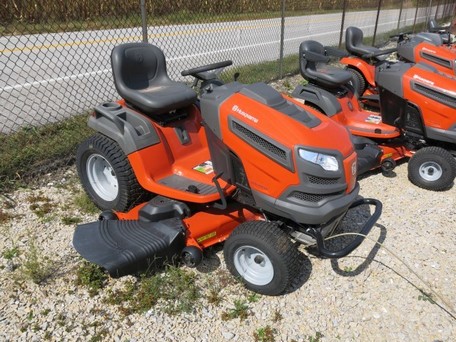

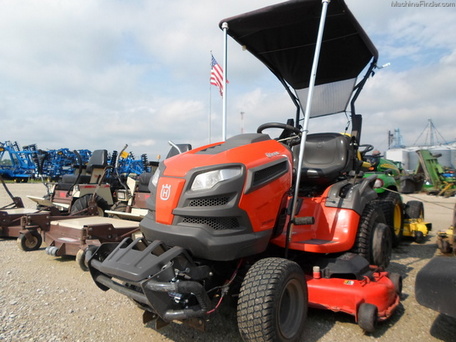

Husqvarna GTH24K54

Production: 2013

Production
Manufacturer:	Husqvarna
Type:	Lawn tractor
Original price:	$2900 (2013 )

Mechanical
Chassis:	4x2 2WD
Cab:	Open operator station with high-back seat.
Transmission:	hydrostatic

Capacity
Fuel:	4 gal 15.1 L

Power Take-off (PTO)
Mid PTO:	independent
Clutch:	electric

Electrical
Ground:	negative
Charging amps:	15

Engine Detail
Kawasaki FR730V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement:	726 cc 44.3 ci
Bore/Stroke:	3.071x2.992 inches 78 x 76 mm
Power (gross):	24 hp 17.9 kW
Compression:	8.2:1
Torque:	39.7 lb-ft 53.8 Nm
Torque RPM:	2400
Starter:	electric
Starter volts:	12
Sparkplug:	NBK BPR4ES
Sparkplug gap:	0.030 inches 0.762 mm

Transmission
Transmission:	Hydro-Gear G7
Type:	belt-driven hydrostatic
Gears:	infinite forward and reverse
Oil change:	sealed unit, service not recommended

Dimensions
Wheelbase:	48 inches 121 cm
Length:	71.3 inches 181 cm
Width:	57 inches 144 cm
Height:	42.5 inches 107 cm
Weight:	551 lbs 249 kg
Front axle:	Cast-iron
