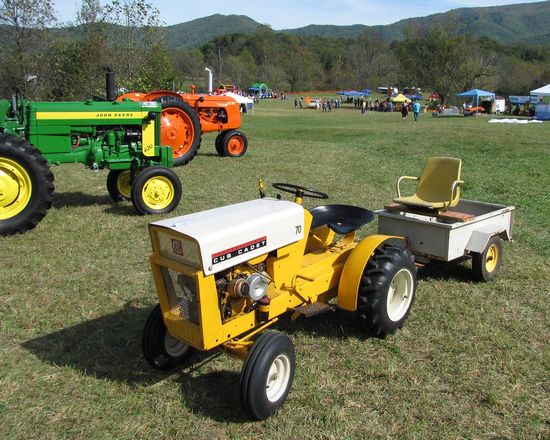

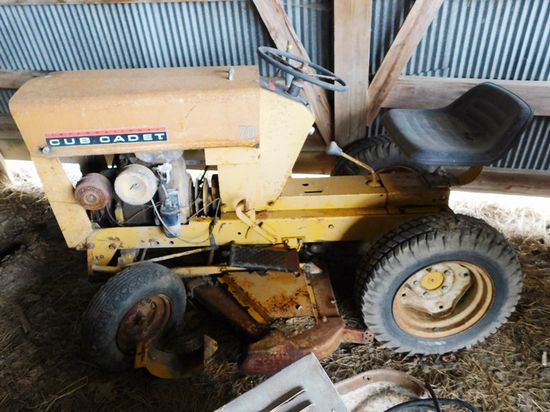

Cub Cadet 70
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Cub Cadet (a part of International Harvester) |
| Type | Garden tractor |
| Factory | Louisville, Kentucky, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | dry disc |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Rear PTO | transmission |
70 Serial Numbers | |
| 1963 | 65458 |
| 1964 | 73875 |
| 1965 | 104307 |
| Final | 127160 |
70 Serial Location | |
| Serial number stamped into the right side of transmission below frame rail. |
Electrical | |
| Ground | negative |
| Charging system | generator |
| Battery volts | 12 |
Engine Detail | |
| Kohler K-161 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 262 cc 16 ci |
| Bore/Stroke | 2.875x2.5 inches 73 x 64 mm |
| Power | 7 hp 5.2 kW |
| Rated RPM | 3600 |
| Starter volts | 12 |
Dimensions | |
| Wheelbase | 43 inches 109 cm |
| Height | 40 inches 101 cm |
| Ground clearance | 6 inches 15 cm |
