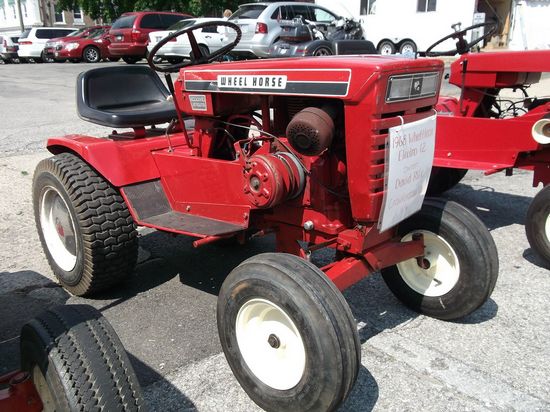

Wheel Horse Electro 12

Production: 1968 - 1970
Type: Garden Tractors

Contents:

Production

Manufacturer:Wheel Horse
Type:Garden tractor
Factory:South Bend, Indiana, USA

Mechanical

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:hydrostatic

Capacity

Fuel:2 gal 7.6 L

Power Take-off (PTO)

Front PTO:independent
Clutch:electro-magnetic

Electro 12 Serial Numbers

Location:Serial number plate on the tractor's dashboard. Model code listed in parenthesis.
1968: (1-7235) 1969: (1-7245) 1970: (1-7255)

Electrical

Ground:negative

Engine Detail

Kohler K301S
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement:476 cc 29.07 ci
Bore/Stroke:3.38x3.25 inches 86 x 83 mm
Power:12 hp 8.9 kW
Rated RPM:3600
Starter volts:12

Transmission

Manufacturer:Sundstrand
Type:belt-driven hydrostatic
Gears:infinite forward and reverse

Dimensions

Wheelbase:45.5 inches 115 cm
Length:65 inches 165 cm
Width:36 inches 91 cm
Height (steering wheel):40 inches 101 cm
Height (hood):35 inches 88 cm
Shipping:660 lbs 299 kg
Ground clearance:7.25 inches 18 cm
