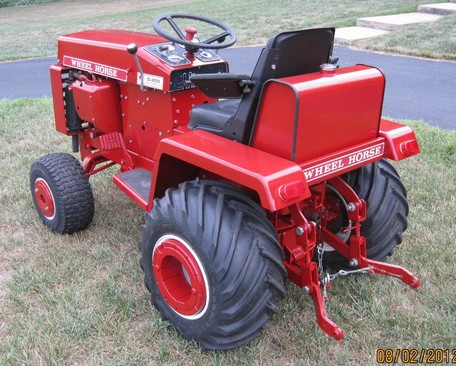

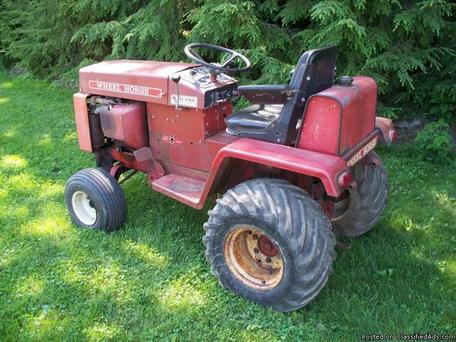

Wheel Horse D-200
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Wheel Horse |
| Type: | Garden tractor |
| Factory: | South Bend, Indiana, USA |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 8 gal 30.3 L |
Tractor hitch | |
| Rear Type: | 0*Optional |
D-200 Serial Numbers | |
| Location: | Serial number plate on the lower dashboard of the Wheel Horse D-200, below the steering column. |
Electrical | |
| Ground: | negative |
| Charging amps: | 15 |
Engine Detail | |
| Kohler K532S | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement: | 879 cc 53.68 ci |
| Bore/Stroke: | 3.38x3.00 inches 86 x 76 mm |
| Power: | 19.9 hp 14.8 kW |
| Rated RPM: | 3600 |
| Starter volts: | 12 |
| Oil capacity: | 3.5 qts 3.3 L |
| Sparkplug gap: | 0.035 inches 0.889 mm |
| Point gap: | 0.020 inches 0.508 mm |
Transmission | |
| Transmission: | Sundstrand 90 |
| Type: | hydrostatic |
| Gears: | infinite forward and reverse |
| Oil capacity: | 6 qts 5.7 L |
Dimensions | |
| Wheelbase: | 50 inches 127 cm |
| Length: | 75.5 inches 191 cm |
| Width: | 45 inches 114 cm |
| Height: | 45.5 inches 115 cm |
| Weight: | 1025 lbs 464 kg |
