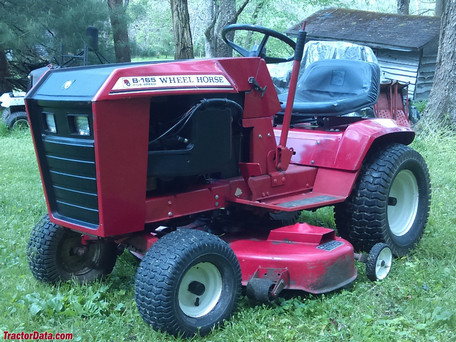

Wheel Horse B-165

Production: 1980 - 1984

Production
Manufacturer	Wheel Horse
Type	Lawn tractor
Factory	South Bend, Indiana, USA

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual

B-165 Serial Numbers
1980	02-16BP01 (gear)
1981	02-16BP02 (gear)
1981	02-16BP03 (gear)
1982	02-16BP04 (gear)
1983	12-16BP01 (gear)
1982	02-16BE01 (hydro)
1983	12-16BE01 (hydro)
1984	12-16BE02 (hydro)

B-165 Serial Location

Serial number plate on right side of tractor.

Electrical
Ground	negative
Charging amps	3
Battery volts	12

Engine Detail
Briggs & Stratton 402707
gasoline
2-cylinder
air-cooled
Displacement	655 cc 40 ci
Bore/Stroke	3.43x2.0625 inches 87 x 52 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Starter volts	12
Oil capacity	1.5 qts 1.4 L
Sparkplug	Champion RJ-12
Sparkplug gap	0.030 inches 0.762 mm

Dimensions
Wheelbase	45.5 inches 115 cm
Length	67 inches 170 cm
Width	36 inches 91 cm
Height	37 inches 93 cm
Shiping weight	380 lbs 172 kg
