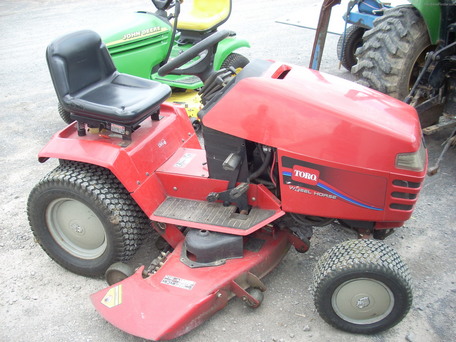

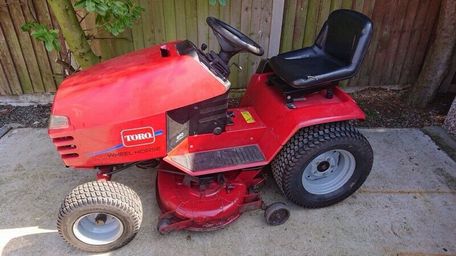

Wheel Horse 270-H

Production: 1996 - 2003

Production
Manufacturer	Wheel Horse (a part of Toro)
Type	Garden tractor
Original price	$4,499 (2002 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

270-H Serial Numbers
Location:	Serial number decal on the rear fender deck, below the seat.

Electrical
Ground	negative
Charging amps	15
Battery CCA	340
Battery volts	12

Engine Detail
Kohler CV20S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	20 hp 14.9 kW
Starter	electric
Starter volts	12

Transmission
Transmission	Tuff Torq K-61A
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L
Oil type	SAE 10W-30

Dimensions
Wheelbase	49.5 inches 125 cm
Length	69 inches 175 cm
Width	35.5 inches 90 cm
Weight	580 lbs 263 kg
Front axle	Cast-iron
