Wheel Horse 267-H

Production: 1996 - 1998

267-H Serial Location

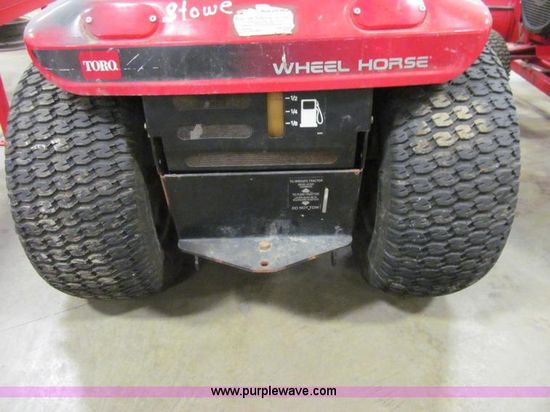

Serial number decal on the rear fender deck, below the seat.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Kohler CV18S
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement	622 cc 38 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

Transmission
Transmission	Tuff Torq K-61A
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L
Oil type	SAE 10W-30

Dimensions
Wheelbase	49.5 inches 125 cm
Length	69 inches 175 cm
Width	35.5 inches 90 cm
Weight	540 lbs 244 kg
