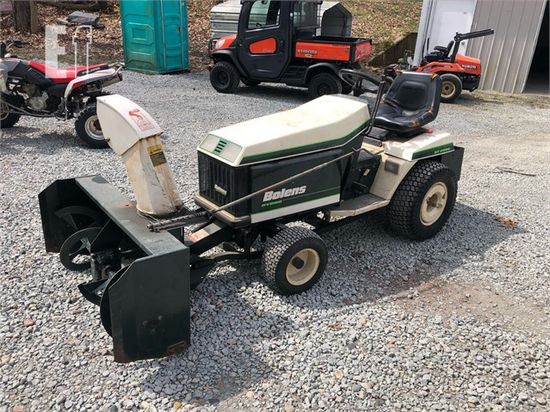

Bolens GT-2000

Production: 1988 - 1993

Production
Manufacturer	Bolens
Type	Garden tractor
The GT-2000 carried Bolens model code 5120H.

Mechanical
Chassis	4x2 2WD
Cab	Open operator station

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

Engine Detail
Kohler M20QS
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement	770 cc 46.98 ci
Bore/Stroke	3.12x3.06 inches 79 x 78 mm
Power	20 hp 14.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Sparkplug	Champion RV15YC
Sparkplug gap	0.025 inches 0.635 mm

Transmission
Transmission	Eaton 11
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions
Wheelbase	49 inches 124 cm
Length	76.75 inches 194 cm
Width	38.5 inches 97 cm
Height	47.75 inches 121 cm
Shipping weight	976 lbs 442 kg
Ground clearance	6.5 inches 16 cm
