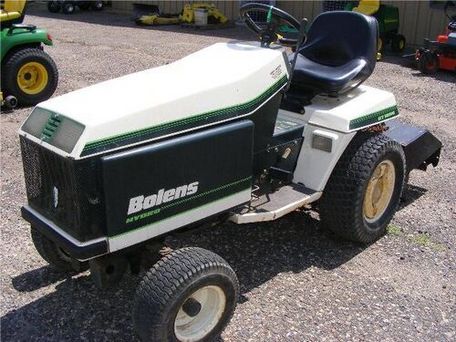

Bolens GT-1800

Production: 1988 - 1993
Type: Garden Tractors

Contents:

Production

ManufacturerBolens
TypeGarden tractor
The GT-1800 carried Bolens model codes 5118H and 5118HS (power steering).

Mechanical

Chassis4x2 2WD
Steeringmanual
power optional
CabOpen operator station

Tractor hitch

Typesleeve hitch OptOptional

Electrical

Groundnegative
Charging systemflywheel alternator
Charging amps15
Battery volts12

Engine Detail

Kohler M18QS
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement691 cc 42.18 ci
Bore/Stroke3.12x2.75 inches 79 x 70 mm
Power18 hp 13.4 kW
Rated RPM3600
Starterelectric
Starter volts12
Oil capacity1.75 qts 1.7 L
SparkplugChampion RV15YC
Sparkplug gap0.025 inches 0.635 mm

Transmission

TransmissionEaton 11
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse

Dimensions

Wheelbase49 inches 124 cm
Length76.75 inches 194 cm
Width38.5 inches 97 cm
Height47.75 inches 121 cm
Shipping weight925 lbs 419 kg
Ground clearance6.5 inches 16 cm
