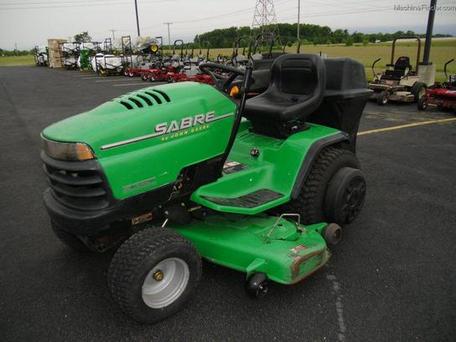

Sabre 2254HV

Production: 1998 - 1999

Production
Manufacturer	Sabre (a part of John Deere)
Type	Garden tractor
Factory	Horicon, Wisconsin, USA

Mechanical
Chassis	4x2 2WD
Steering	manual sector-and-pinion
Brakes	disc
Cab	Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

2254HV Serial Numbers
1998	010001
1999	020001

2254HV Serial Location

Rear of tractor above drawbar.

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	16
Battery CCA	340
Battery volts	12
Battery Group	BCI U1

Engine Detail
Briggs & Stratton 380777
gasoline
2-cylinder
air-cooled V-twin OHV
Displacement	626 cc 38.2 ci
Power (gross)	22 hp 16.4 kW
Air cleaner	dry with foam precleaner
Idle RPM	1550-3550
Starter volts	12

Transmission
Transmission	Kanzaki Tuff Torq K65
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.4 qts 3.2 L

Dimensions
Wheelbase	48.5 inches 123 cm
Length	72.3 inches 183 cm
Width	41.1 inches 104 cm
Height	45.6 inches 115 cm
