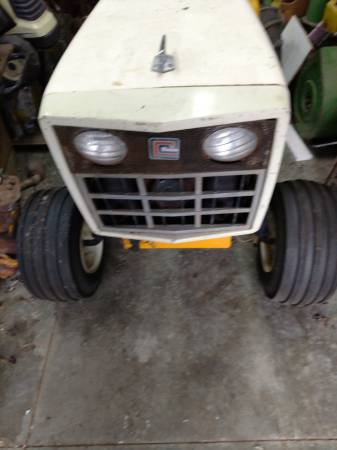

Cub Cadet 1912
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Cub Cadet (a part of MTD) |
| Type: | Garden tractor |
Variants | |
| 1914: | 3-point and PTO |
Mechanical | |
| Chassis: | 4x2 2WD |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 4 gal 15.1 L |
1912 Serial Numbers | |
| Location: | Serial number tag on the left side of the Cub Cadet 1912, above the foot rest. |
| 1985: 737625 1986: 747225 | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 20 |
Engine Detail | |
| Onan B48G | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement: | 781 cc 47.7 ci |
| Bore/Stroke: | 3.25x2.875 inches 83 x 73 mm |
| Power (gross): | 19.9 hp 14.8 kW |
| Idle RPM: | 1200-3400 |
| Starter: | electric |
| Starter volts: | 12 |
| Sparkplug: | Champion RBL-154 |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.021 inches 0.533 mm |
| Intake valve clearance: | 0.008 inches 0.203 mm (cold) |
| Exhaust valve clearance: | 0.013 inches 0.330 mm (cold) |
Transmission | |
| Type: | shaft-driven hydrostatic |
| Gears: | infinite forward and reverse |
| Oil capacity: | 7 qts 6.6 L |
Dimensions | |
| Wheelbase: | 51.6 inches 131 cm |
| Length: | 78.5 inches 199 cm |
| Width: | 43.5 inches 110 cm |
| Height (steering wheel): | 47.5 inches 120 cm |
| Ground clearance: | 7.25 inches 18 cm |
| Front tread: | 33 inches 83 cm |
| Rear tread: | 31.5 inches 80 cm |
