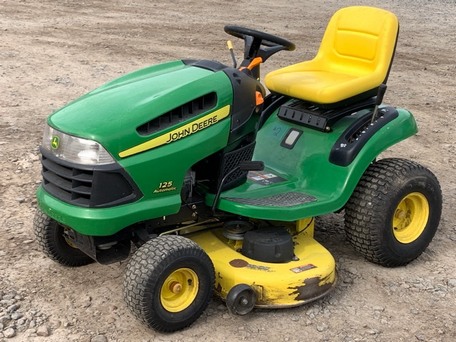

John Deere 125
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Greeneville, Tennessee, USA |
| Original price | $1,799 (2006 ) |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | manual |
125 Serial Numbers | |
| 2006 | 010001 |
Electrical | |
| Ground | negative |
| Charging system | Regulated circuit |
| Charging amps | 9 |
| Battery volts | 12 |
| Battery Group | U1 |
Engine Detail | |
| Briggs & Stratton | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement | 724 cc 44.2 ci |
| Bore/Stroke | 2.97x2.89 inches 75 x 73 mm |
| Power | 20 hp 14.9 kW |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.010 inches 0.254 mm |
| Intake valve clearance | 0.005 inches 0.127 mm |
| Exhaust valve clearance | 0.005 inches 0.127 mm |
Transmission | |
| Transmission | Tuff Torq T40 |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
Dimensions | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 69 inches 175 cm |
| Width | 52 inches 132 cm |
| Height | 41 inches 104 cm |
| Weight | 464 lbs 210 kg |
