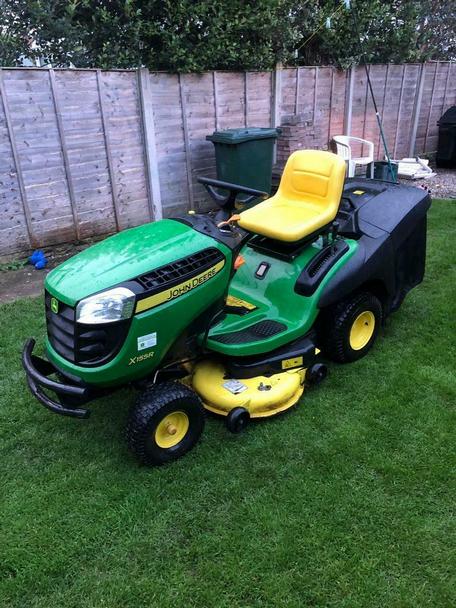

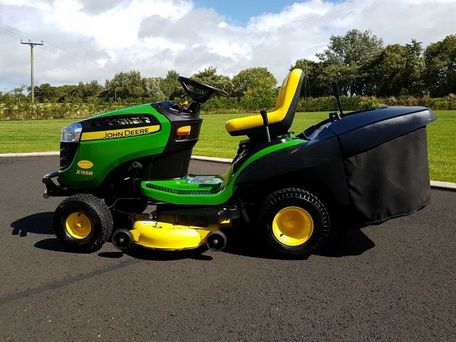

John Deere X155R
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Lawn tractor |
| Factory: | Greeneville, Tennessee, USA |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 2 gal 7.6 L |
Power Take-off (PTO) | |
| Front PTO: | independent |
| Clutch: | electric |
Electrical | |
| Ground: | negative |
| Charging system: | regulated circuit |
| Charging amps: | 9 |
Engine Detail | |
| Briggs & Stratton 4055 | |
| gasoline | |
| 2-cylinder | |
| air-cooled | |
| Displacement: | 655 cc 40 ci |
| Bore/Stroke: | 2.97x2.89 inches 75 x 73 mm |
| Power (gross): | 16.8 hp 12.5 kW |
| Air cleaner: | paper and foam |
| Starter: | electric |
| Starter volts: | 12 |
| Sparkplug gap: | 0.030 inches 0.762 mm |
| Point gap: | 0.010 inches 0.254 mm |
| Intake valve clearance: | 0.005 inches 0.127 mm |
| Exhaust valve clearance: | 0.005 inches 0.127 mm |
Transmission | |
| Transmission: | Tuff Torq T40 |
| Type: | hydrostatic |
Dimensions | |
| Length: | 99 inches 251 cm |
| Width: | 43.8 inches 111 cm |
| Height: | 44 inches 111 cm |
| Weight: | 460 lbs 208 kg |
